LS 150 T (1000 rpm, Hinge 8t)

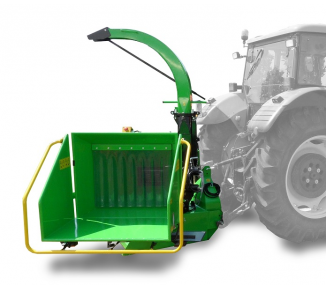

Chipper LS 150 T (1000 rpm, Hinge 8t)
Chipper

This chipper is designed for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass or for manufacture of chips from aforesaid materials and also for disposal of redundant timber such as sticks, deals, pickets etc. The chipper can dispose all these materials with diameter up to 160 mm or flat boards and plates with thickness up to 60 mm.

This chipper is equipped also with NO-Stress anti-blocking device.

Code: LS-2404 (1000 rpm with tractor hitch 8t)

7 ÷ 12 m3/h
30 ÷ 50 HP
Max. 150 mm

Technical specification

TECHNICAL SPECIFICATION
LS 150 T
Length
2540 mm ; 2040 (transport)
Width
1370 mm ; 1420 (transport)
Height
2540 mm ; 2000 (transport)
Weight
778 kg
Load
ca. 7-12 m3/hr
Recommended branch max. diameter
160 mm
CUTTING HEAD
Diameter
560 mm
Number of blades
2
Wood chips size
9 mm
Turning on
freewheel clutch
FEEDING DEVICE
Feeding hole size (B×H)
290 x 220 mm
Number of rolls
2
HOPPER
Directional rotation
180° - 7 positions
Feeding profile (B×H)
920 x 800 mm
TRACTOR HITCH
3-point linkage
Category 2
Power PTO
30 – 50 HP
PTO
1000 rpm
Electrical system
12V
WORK SAFETY ELEMENTS
Machine-hour meter, charging indicator lamp, master power switch, safety grip
ACCESSORIES
Electronic regulation - NOSTRESS
Trailer coupling 8t.
ACCESSORIES options (NOT INCLUDED)
Cardan shaft L=1000 mm (Kardan 4542)
