TR 50/7 (50 cm)

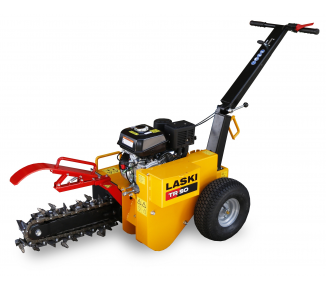

Trencher TR 50/7   (50 cm)
Trencher

The trencher TR 50/6 facilitates trenching works at cables and lines laying in gardens, schools and parks without moving too much earth. The trench itself is up to 45 cm deep with a plain and clean unvaried profile given by the cutting chain width. The machine is used for trenching in compact soils with small stones in size up to 45 mm in one-man operation.

The trenching speed is about 60 running meters per hour. The trench itself is up to 45 cm deep with plain and clean profile.

Loose soil is displaced by means of an auger aside from the trench which enables easy trench refilling. Compact design of the trencher, its engine power output and play of forces make its operation and control very easy.

Code: DR-01260

100 mm
450 mm

Technical specification

TECHNICAL SPECIFIKATION
TR 50/7
Length
1560 mm
Width
700 mm
Height
800 mm
Weight
135 kg
TRENCH DIMENSIONS
Trench width
100 mm
Trench depth
450 mm
ENGINE
KOHLER CH 270
Power
5,2 kW (7 HP)
Fuel tank capacity
4,1 l
Start
Manual

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.

Kohler Lombardini Page of model
