FZ 560 T - M

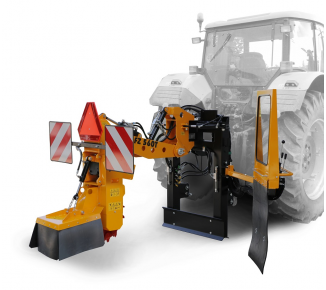

Stump cutter FZ 560 T - M
Stump cutter

This tractor-mounted stump cutter is designed for cutting a stump both with its above- and also under-ground part while being coupled to a three-point hitch. Max. stump diameter is unlimited. Manual control.

Code: F-304 505

40 HP
> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
FZ 560 T/M
Length
2200 mm
Width
1400 mm
Height
1900 mm
Weight
546 kg
Power output
1÷2 m³/hr
CUTTING WHEEL
Diameter
560 mm
Number of blades
18
CUTTING RANGE
Above ground
700 mm
Under ground
600 mm
Cutting width
1500 mm
Stump diameter
no limitation
Drive
PTO output
40 HP
PTO speed
540 rpm
HINGE 3-Point
Class 1, 2
CONTROL
Manual
NOT INCLUDED
Kardan + coupler
