LS 160 DWB

Powerful chipper with diesel engine on braked chassis (25 HP) LS 160 DWB
Powerful chipper with diesel engine on braked chassis (25 HP)

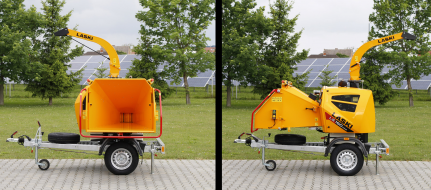

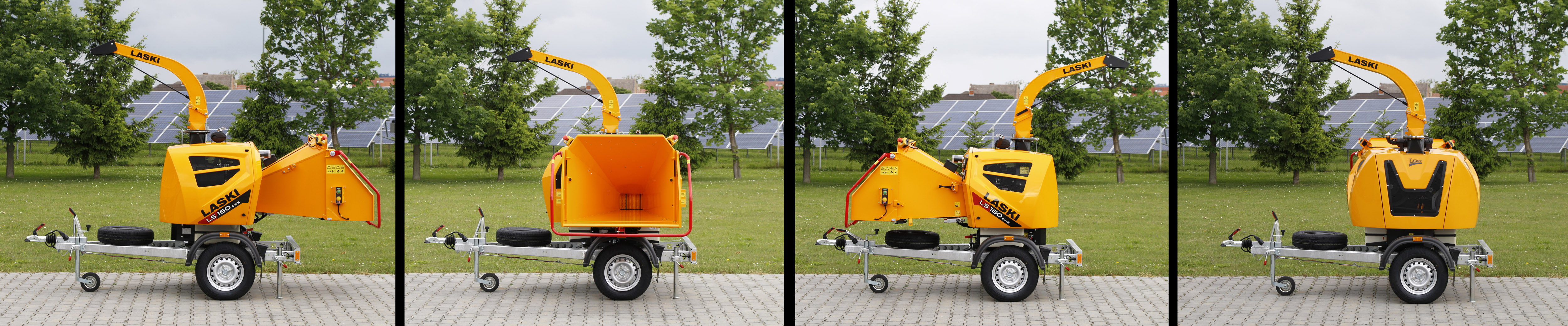

The chipper LS 160 DWB is a compact machine intended for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass, for chipping of redundant timber such as sticks, deals, pickets etc. and also for manufacture of chips from aforesaid materials. It can dispose all these materials with diameters up to 160 mm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also environmentally friendly water-cooled 25 HP Kohler diesel engine (EU Stage V, US Tire 4 Final).

With a maximum towing weight of 2670 kg, a Group B licence is sufficient for towing. (Maximum towing weight 3500 Kg.)

With a maximum towing weight of 3420 kg, a Group B licence with the B96 extension is sufficient for towing (no written test). (Maximum towing weight 4250 Kg.)

Code: LC-10003

12 ÷ 16 m3/h
830
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160 DWB (2021 - category O2)
Length :
3485 mm; (3155 mm - transport)
Width :
1590 mm
Height :
2500 mm ; (1920 mm - transport)
Weight :
830 kg
Load :
12 ÷16 m3/hod
Fuel consumption :
3,5 ÷ 4 l/hod
Recommended branch-wood maximum diameter :
160 mm
CUTTING HEAD
Diameter :
600 mm
Number of blades :
2
Length chips :
5 ÷ 15 mm
FEEDING DEVICE
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
2
HOPPER
Turning possibility :
360° - 12 positions
Feeding profile(BxH) :
1040 x 800 mm
ENGINE
KOHLER KDW 1404 (EU Stage V, US Tire 4 Final)
Power output :
18,8 kW (25 HP)
Fuel :
DIESEL (B7)
Fuel tank capacity :
20 l
WORK SAFETY ELEMENTS
Machine-hour meter , charging indicator lamp , master power switch, safety grip

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.

Kohler Lombardini Page of model
