LS 160 DW Track

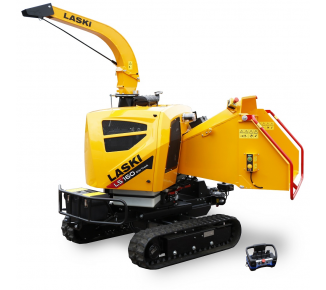

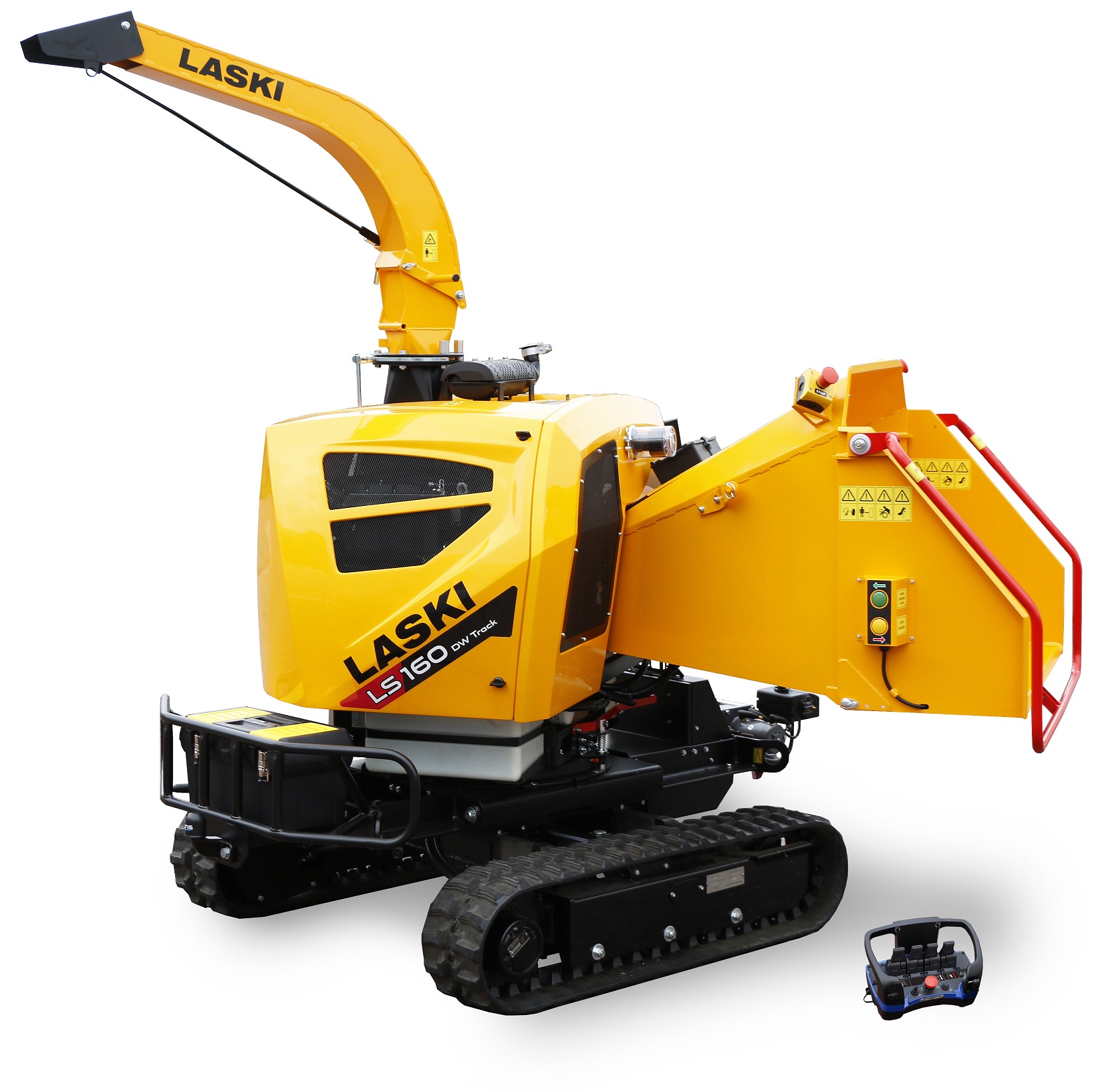

Powerful chipper on tracked chassis with remote controller LS 160 DW Track
Powerful chipper on tracked chassis with remote controller

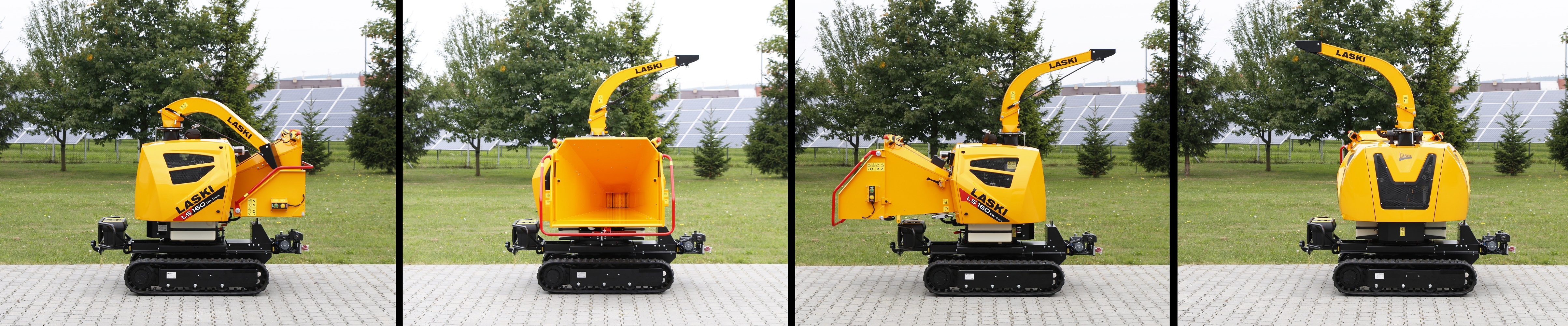

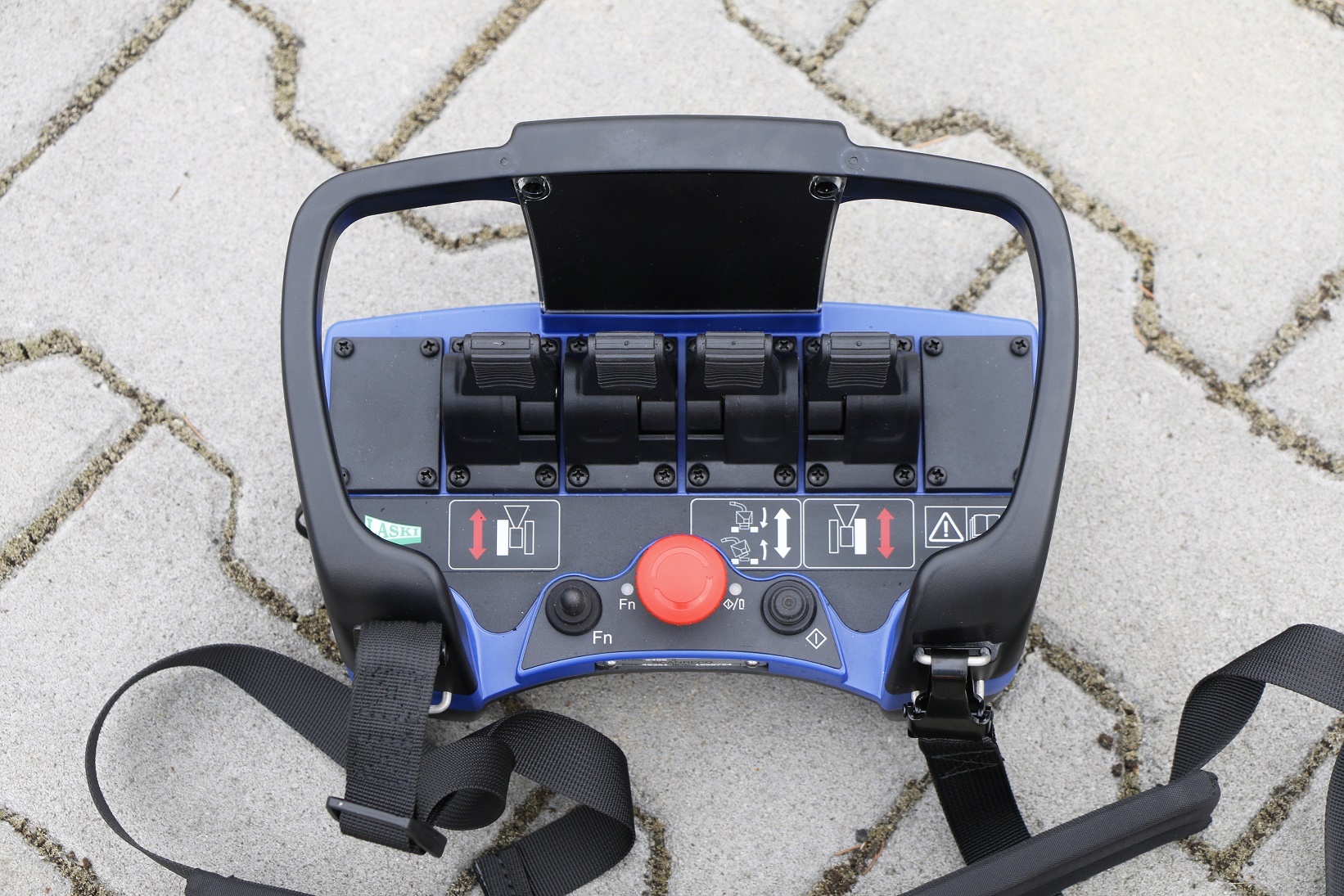

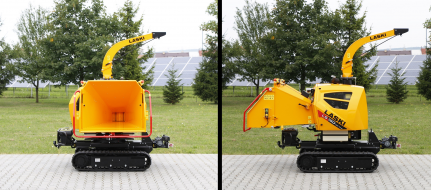

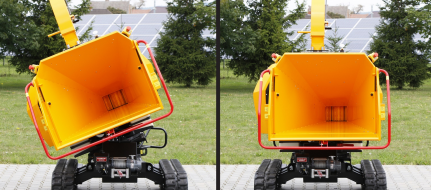

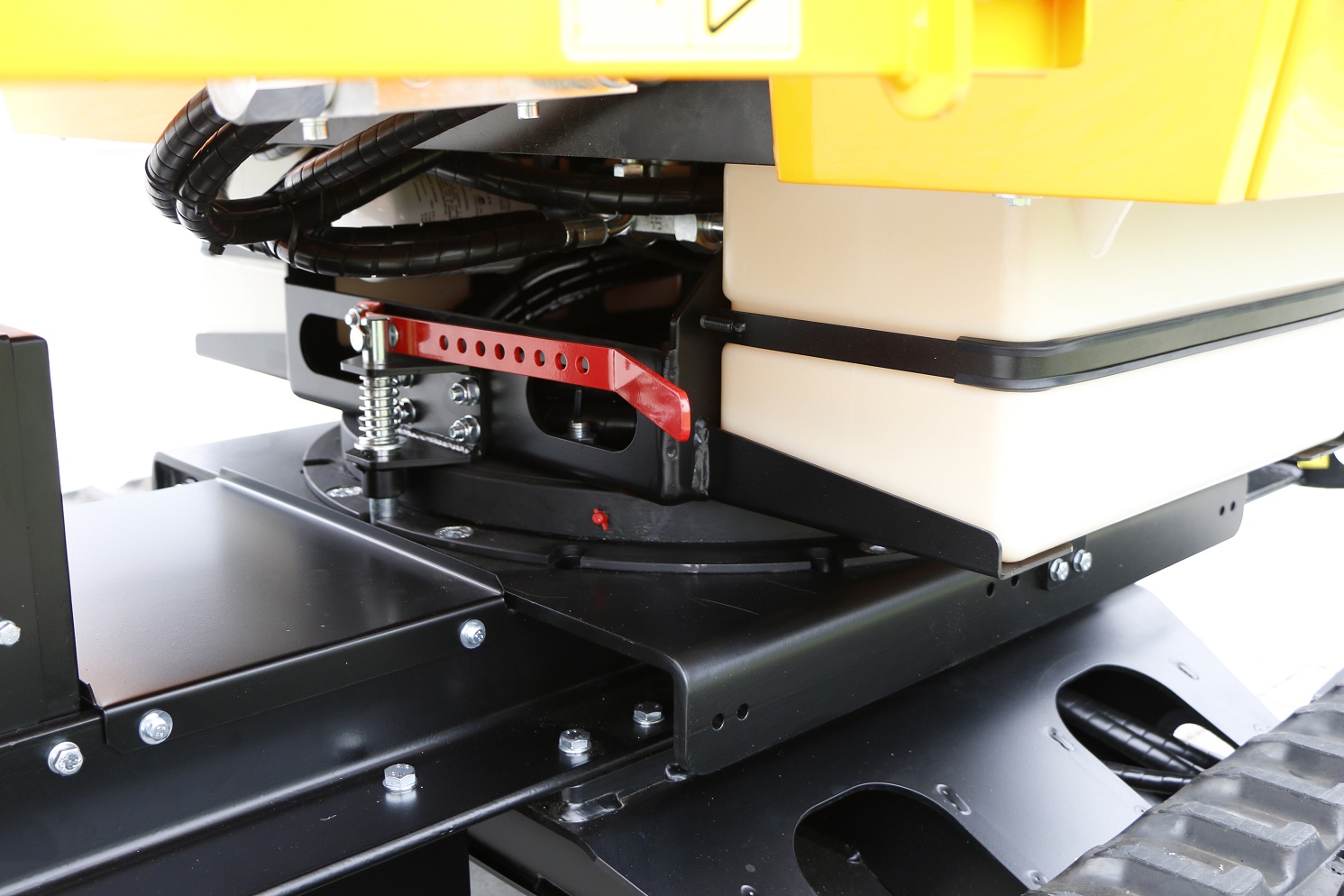

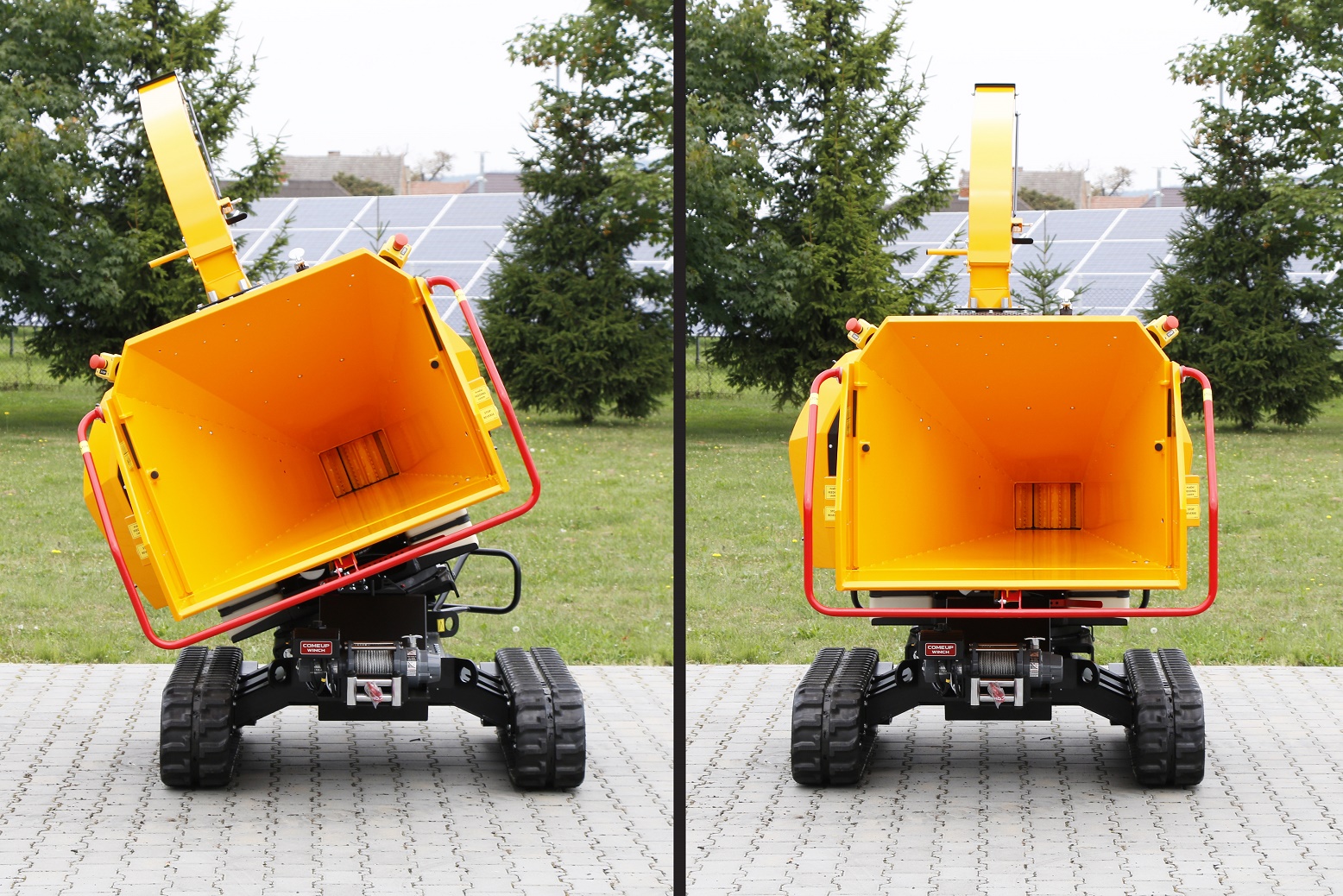

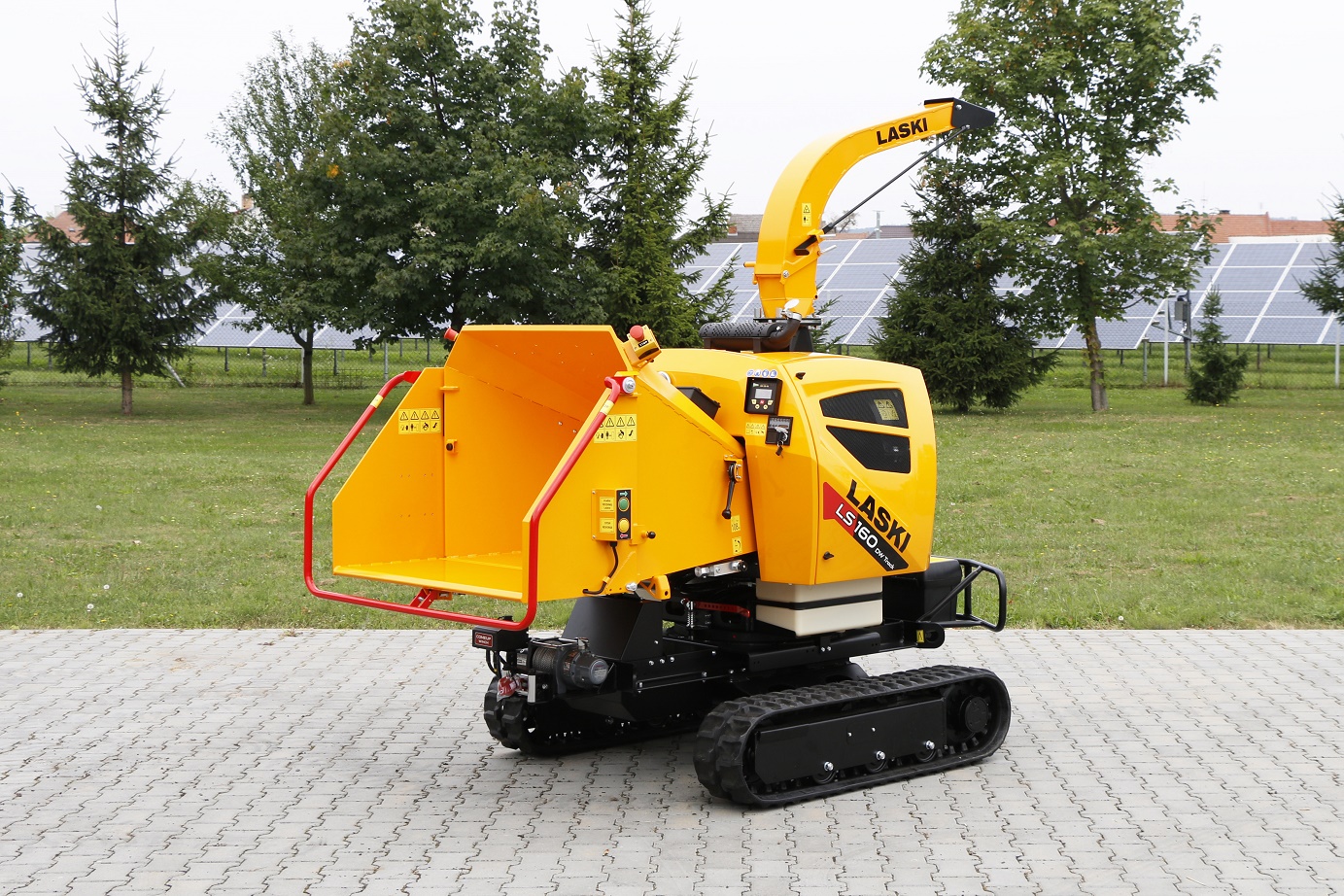

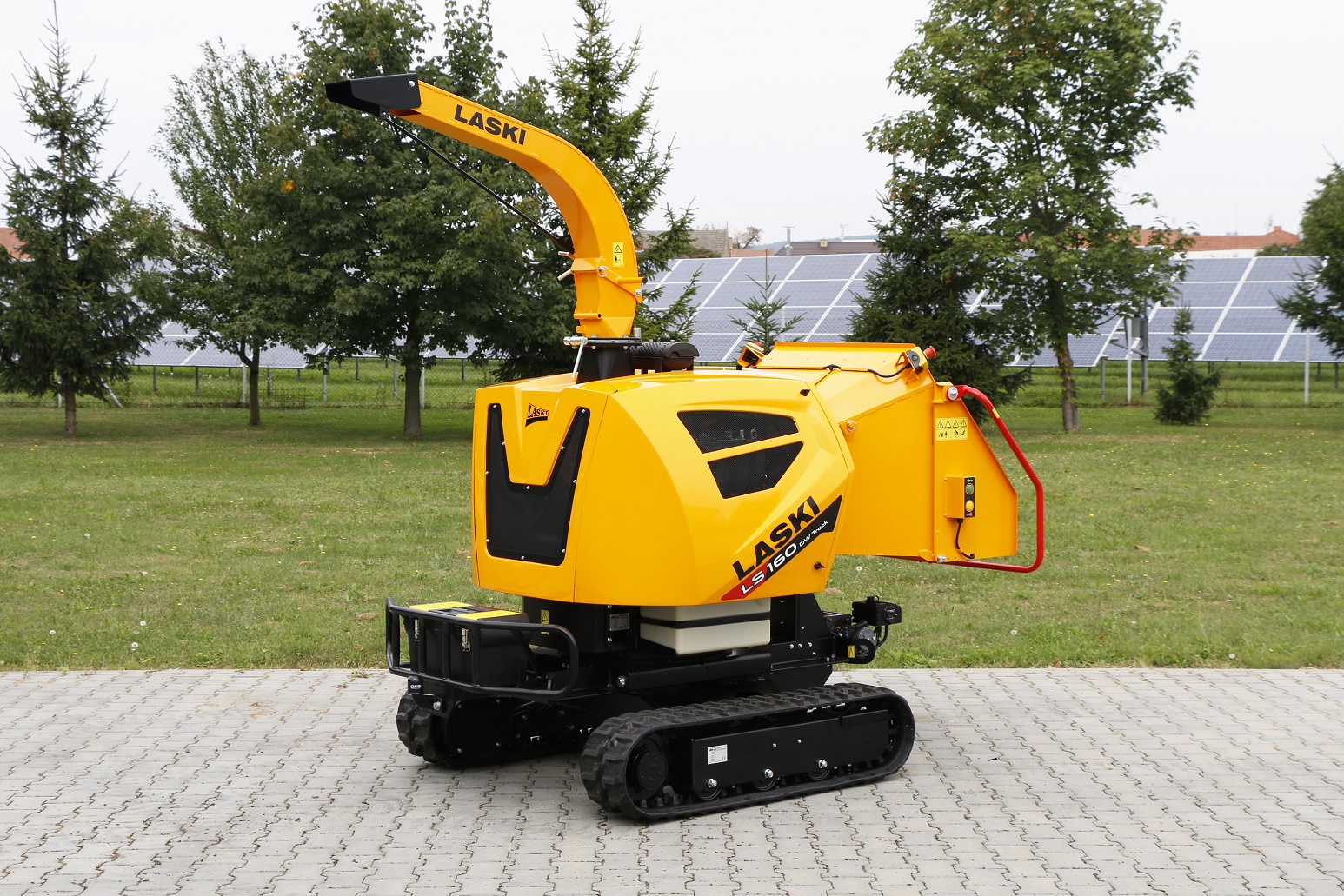

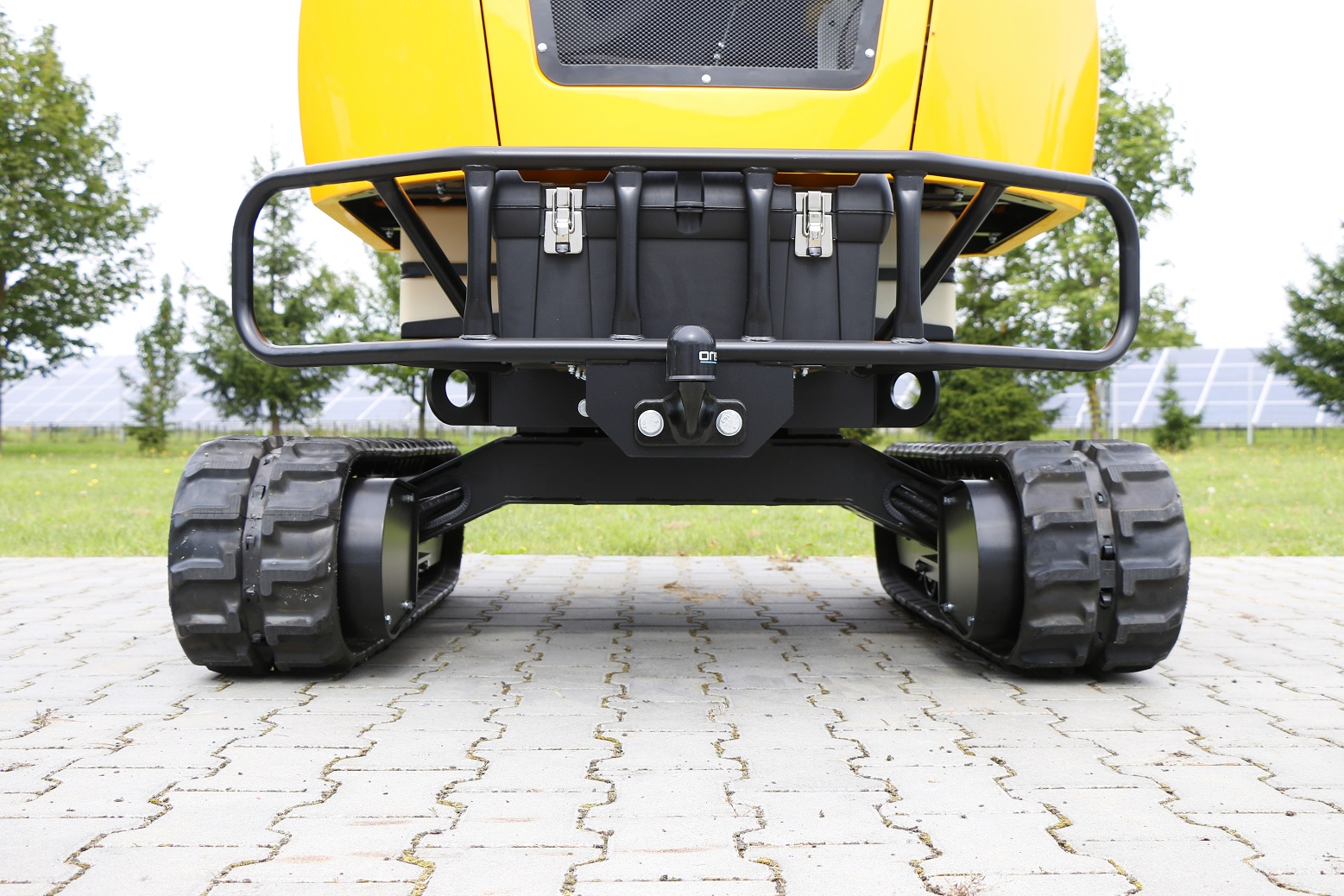

The chipper LS 160 DW Track is a compact machine intended for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass, for chipping of redundant timber such as sticks, deals, pickets etc. and also for manufacture of chips from aforesaid materials. It can dispose all these materials with diameters up to 160 mm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also environmentally friendly water-cooled 25 HP Kohler diesel engine (EU Stage V, US Tire 4 Final). Its remotely controlled undercarriage makes any machine handling very easy especially at loading on transport means or while going on uneven ground. Its tiltable frame enables to reach slopes with climbing ability up to 30o. The frame is completed also with an electrical cable winch and a towing bracket with a joint ball (ISO 50) for trailer coupling.

Code: LC-12001

12 ÷ 16 m3/h
1335
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160DW Track
Length :
2610 mm (2250 přepravní)
Width :
1440 mm
Height :
2535 mm (1950 přepravní)
Weight :
1335 kg
Undercarriage :
Track
Travel Speed :
4 km/h
Load :
12 ÷ 16 m3/hod
Fuel consumption :
3,5 ÷ 4 l/hod
Recommended branch-wood maximum diameter :
160 mm
CUTTING HEAD
Diameter :
600mm
Number of blades :
2
Length chips :
5 ÷ 15 mm
FEEDING DEVICE
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
2
HOPPER
Feeding profile(BxH) :
1040 x 800 mm
ENGINE
KOHLER KDW 1404 (EU Stage V, US Tire 4 Final)
Power output :
18,8 kW (25 HP)
Fuel :
Diesel
Fuel tank capacity :
20 l
WORK SAFETY ELEMENTS

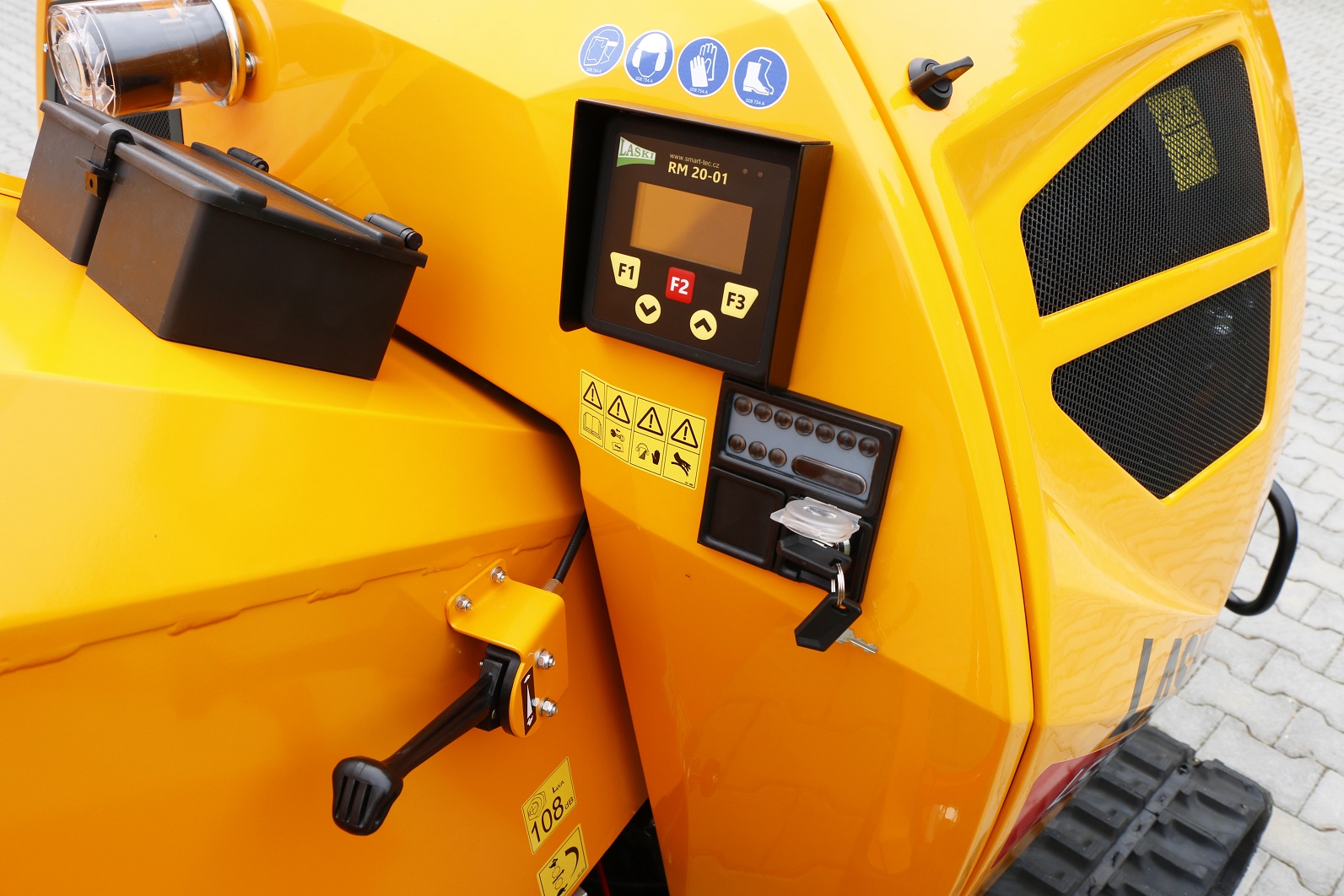

Machine-hour meter , charging indicator lamp , master power switch, safety grip
