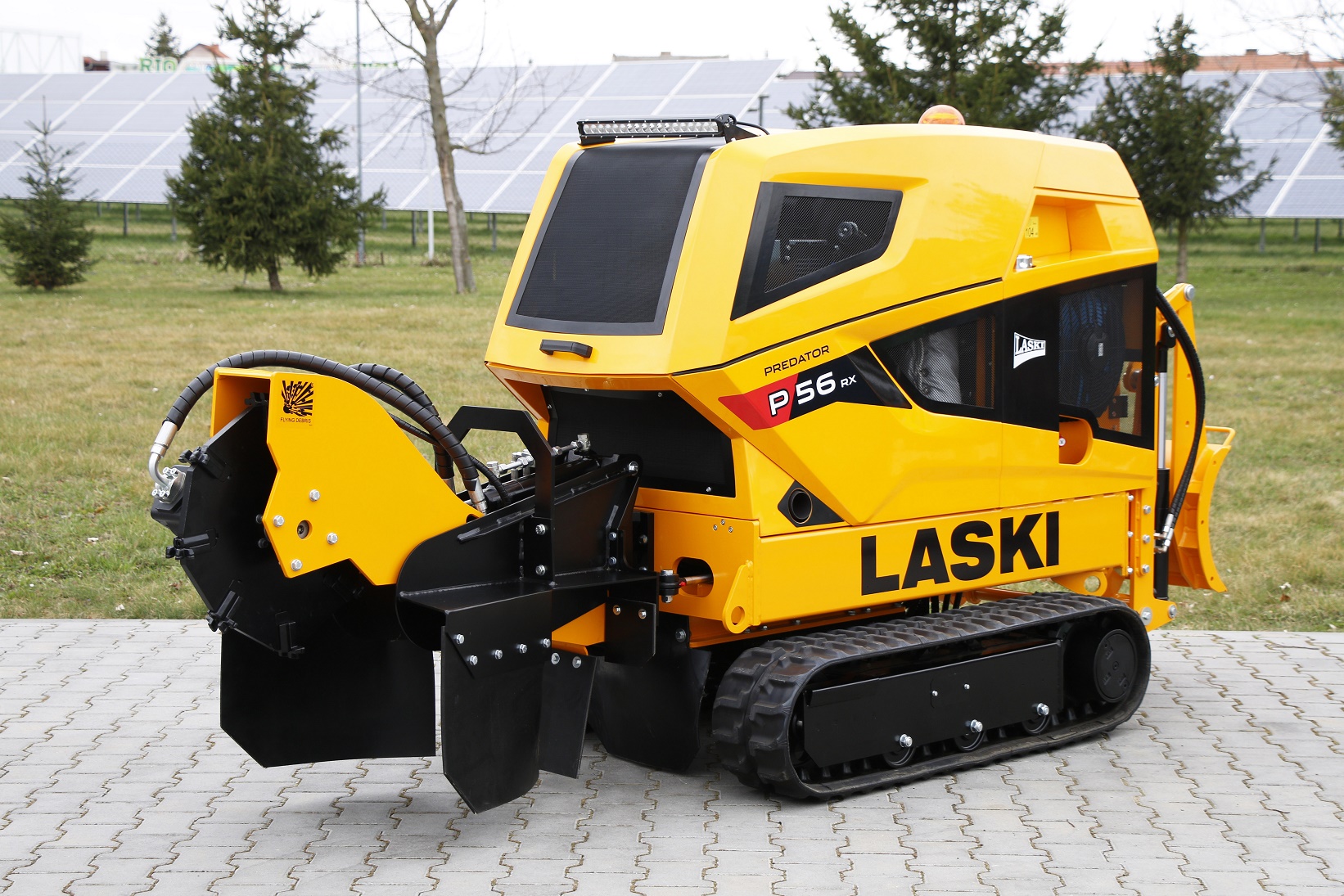

Stump cutter on tracked chassis with remote control P 56 RX

Stump cutter on tracked chassis with remote control   P 56 RX

Our stump cutter P 56 RX is used for cutting of above- and under-ground stump parts. Max. stump diameter to be cut is in fact unlimited. The tracked chassis is wheel-track-adjustable. Its low centre of gravity provides high stability of the machine also under worse field conditions with maximum work safety. Minimum track base of 800 mm makes also limited spaces and narrow sites more accessible. Its fully hydraulic control and remote controller facilitate any handling at work and make manual labour much easier. To the machine rear you can attach various attachments, such as dozer, winder, mulcher etc. This machine is powered by a 56 HP diesel energy-saving and environmentally-friendly engine.

Code: PRX-56-GA-20

Code - Winch P-W-GA Y

RC
> 1500 mm

Technical specification

TECHNICAL SPECIFICATION
P56RX
Length
2900 mm (+ dozer = 3300 mm)
Width
800 – 1180 mm
Height
1625 mm
Weight
1640 kg (+ dozer = 1800 kg)
Power output
2÷3 m³/hr
Fuel consumtion
6÷8 l/h
CUTTING HEAD
Diameter
560 mm
Number of blades
18
CUTTING RANGE
Above ground
700 mm
Under ground
400 mm
Operating range
1500 mm
ENGINE
KOHLER KDI 1903 TCR (EU Stage V, US Tire 4 Final)
Engine
42 kW (56 HP)
Fuel
DIESEL (B7)
Fuel tank capacity
40 l
Control
Remote Control
Travel Speed
4 km/h

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
