LS 160 TT (1000 rpm)

Powerful chipper with swivel base and hitch for 8t trailers
 LS 160 TT (1000 rpm)
Powerful chipper with swivel base and hitch for 8t trailers

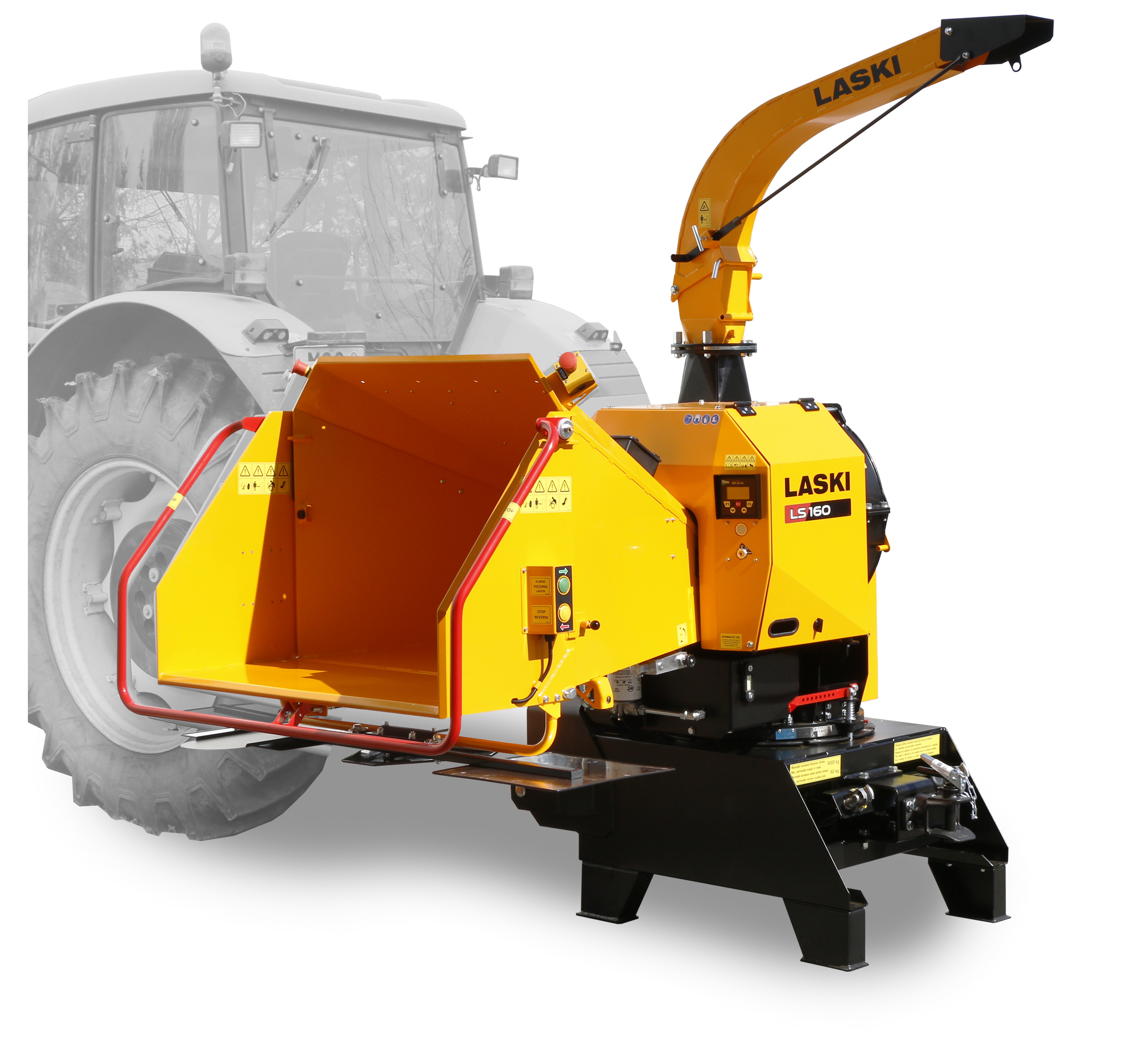

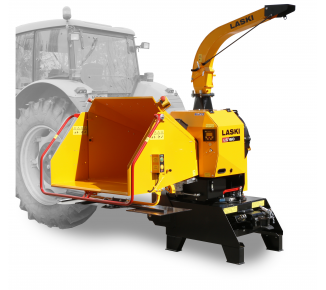

The chipper LS 160 TT is a compact machine intended for disposal of wood waste with diameters up to 160 mm. It should be coupled to a tractor with corresponding three-point linkage (cat. 2). For machine drive you need also PTO shaft assembly for 1000 rpm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of the PTO shaft. Furthermore, standard equipment comprises independent hydraulic system, hour counter (daily/total) and turnable and tiltable discharge duct. This chipper is also equipped with a hitch for coupling of 8t trailers.

12 ÷ 16 m3/h
40 ÷ 80 HP
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160 TT (1000 rpm)
Length
2350 mm ; 2110 mm (přepravní)
Width
1400 mm
Height
2590 mm ; 1990 mm (přepravní)
Weight
740 kg
Load
ca. 12 ÷ 16 m3/hr
Recommended branch max. diameter
160 mm
CUTTING HEAD
Diameter
600 mm
Number of blades
2
Wood chips size
5 ÷ 15 mm
Turning on
freewheel clutch
FEEDING DEVICE
Feeding hole size (B×H)
240 x 170 mm
Number of rolls
2
HOPPER
Directional rotation
--
Feeding profile (B×H)
1040 x 800 mm
TRACTOR HITCH
3-point linkage
Category 2
Power PTO
30 ÷ 55 HP
PTO
1000 rpm
Electrical system
12V
WORK SAFETY ELEMENTS
Machine-hour meter, charging indicator lamp, master power switch, safety grip
ACCESSORIES
Electronic regulation - NOSTRESS
ACCESSORIES options (NOT INCLUDED)
Cardan shaft L=1000 mm (Kardan 4542)
