VD 500 P

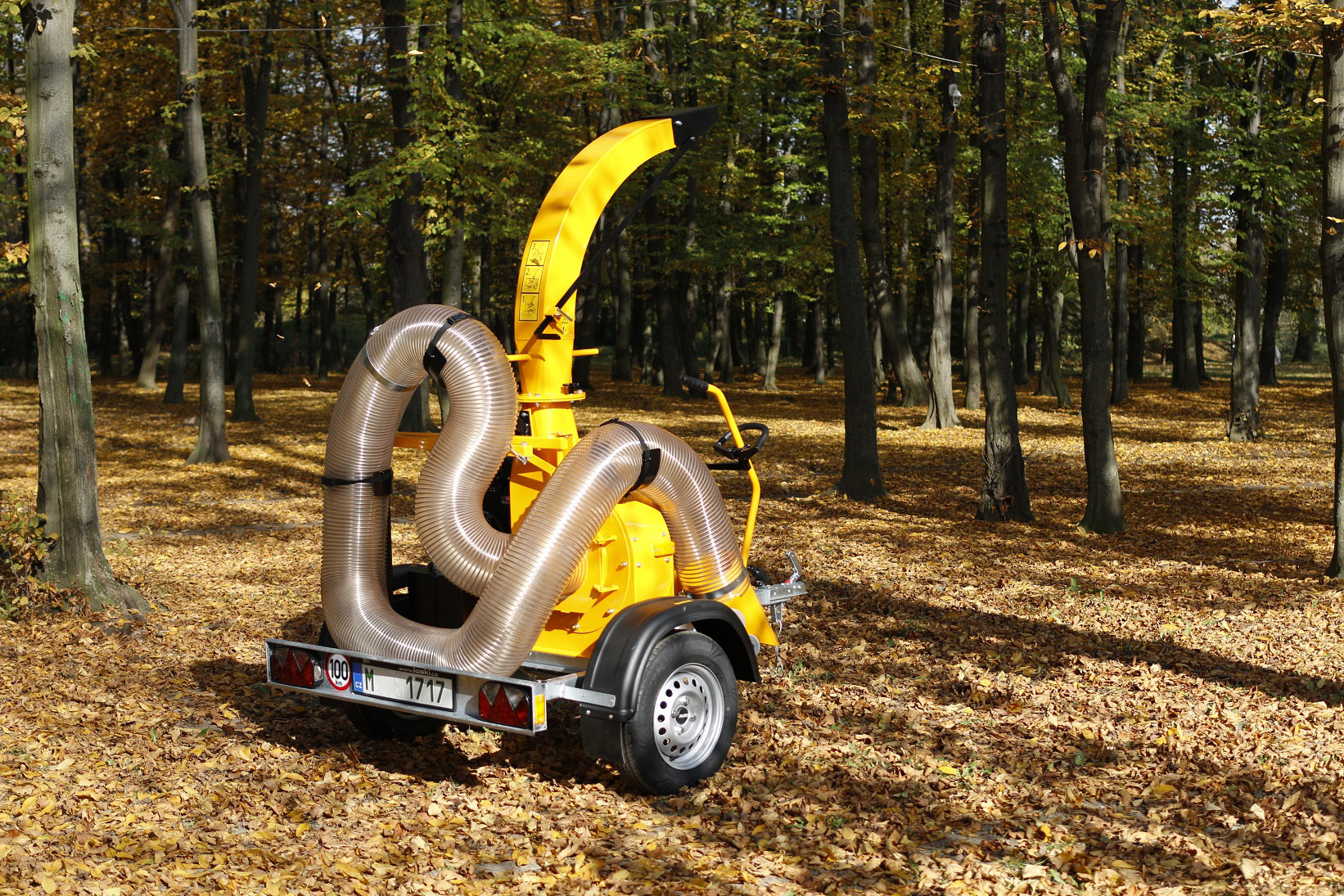

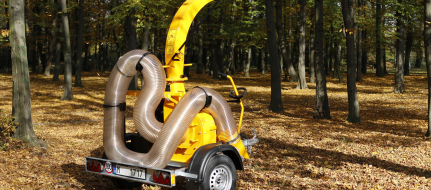

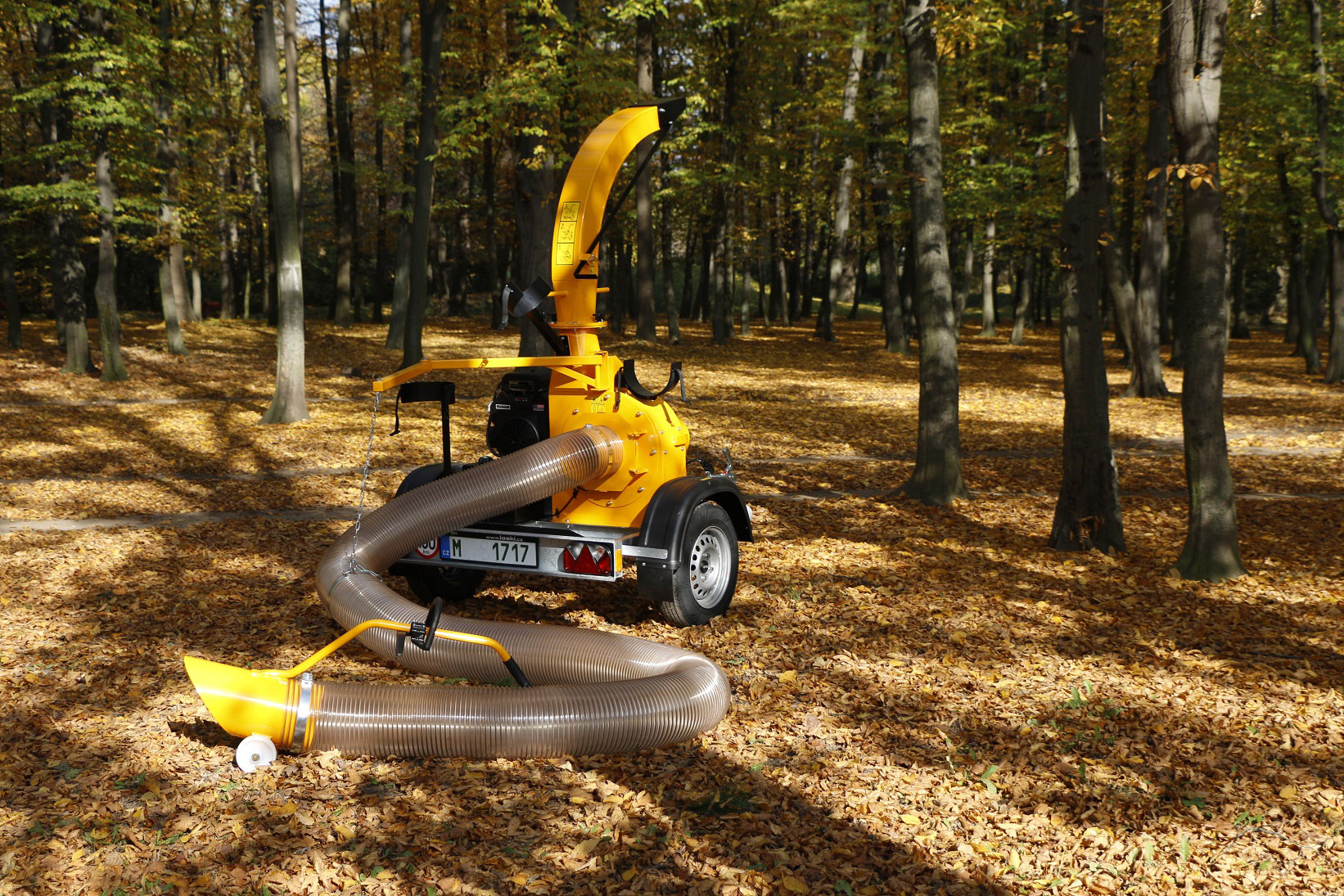

NEW leaves exhauster VD 500 P
NEW leaves exhauster

The leaves exhauster is designed for collecting of leaves, short-cut (mowed) grasses, various municipal waste, papers and wooden chips, in places where gathered after upkeep and cleaning of parks and green areas.

For better resistance of the machine against abrasive materials it is equipped with replaceable abrasion-resistant linings Hardox on inside walls of working spaces which can be highly appreciated at very frequent duty with suction of abrasive particles, e.g. along roads.

Code: V-251 000

390
108 m³/min

Technical specification

TECHNICAL SPECIFIKATION
VD 500 P
Length
2240 mm
Width
1560 mm
Heigth
2500 mm
Weight
390 kg
IMPELLER
Diameter
440 mm
Width
160 mm
Number of blade impellers
6
INLETTUBE
Lenth
6 m
Diameter
220 mm
ENGINE
KOHLER CH 740
Power output
18,6 kW (25 HP)
Fuel
Natural 95
Fuel tank capacity
16 l
Start
electric
NOT INCLUDED
Nozzle with wheels Ø 220 mm
V-250 340

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
