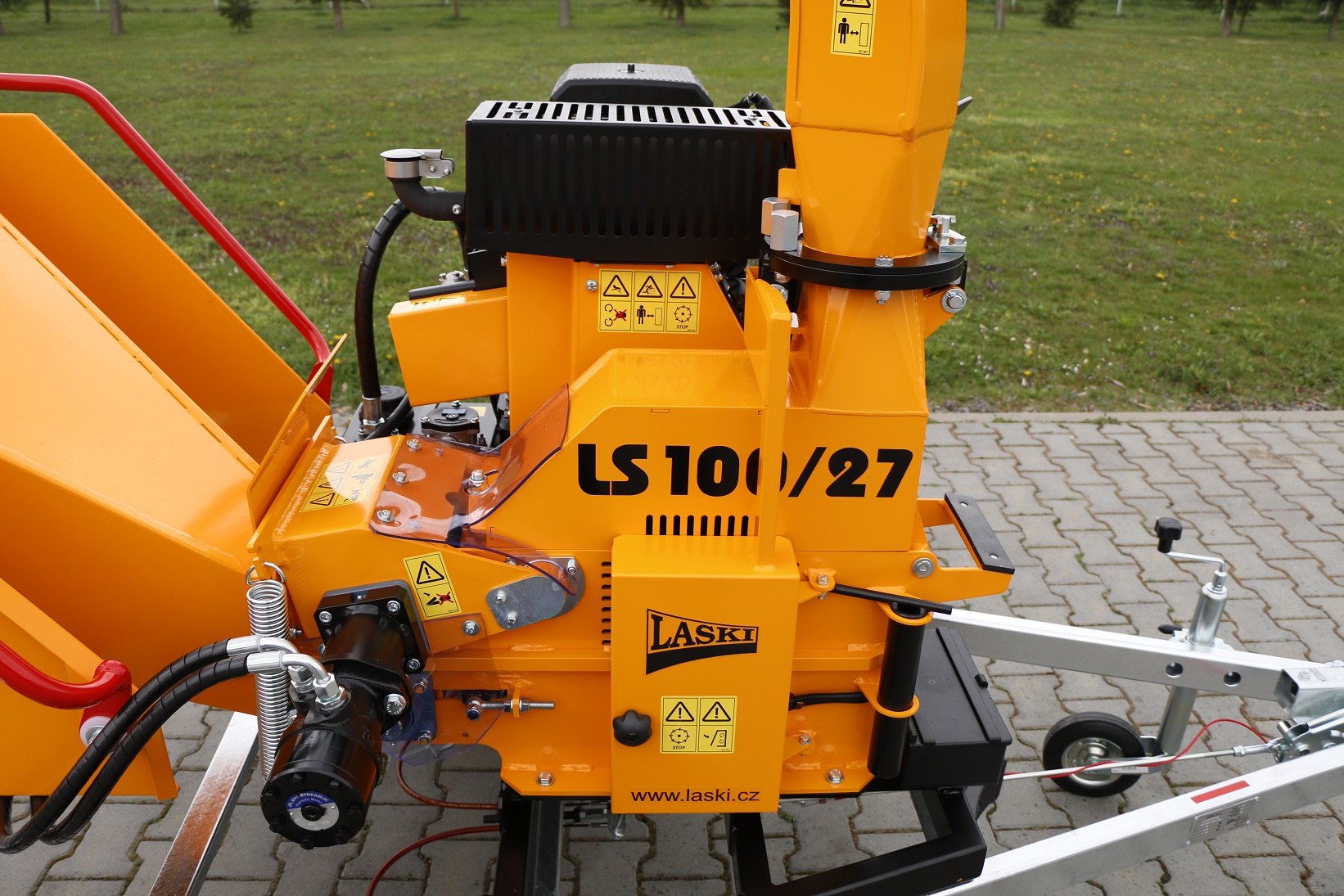

LS 100/27 CB

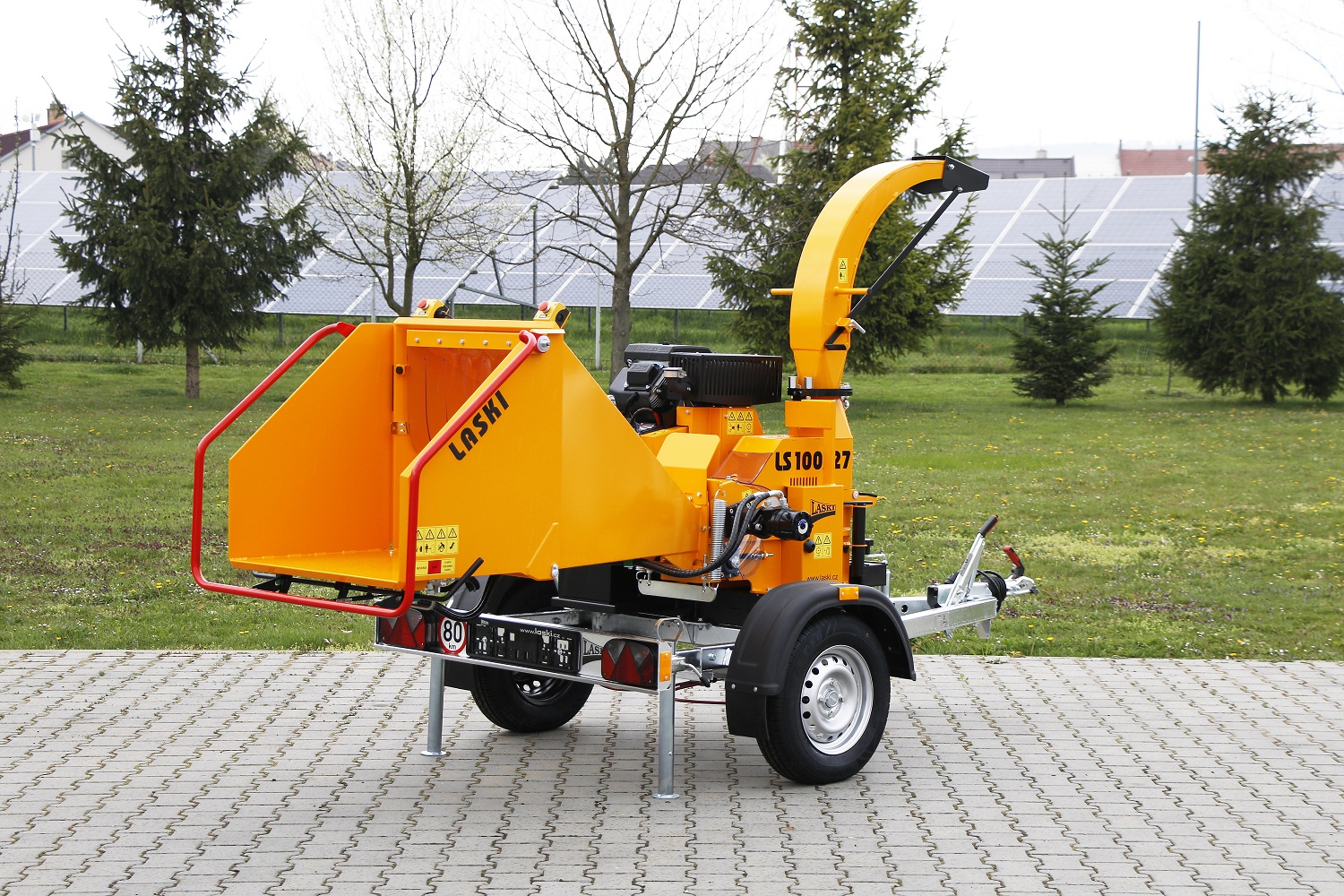

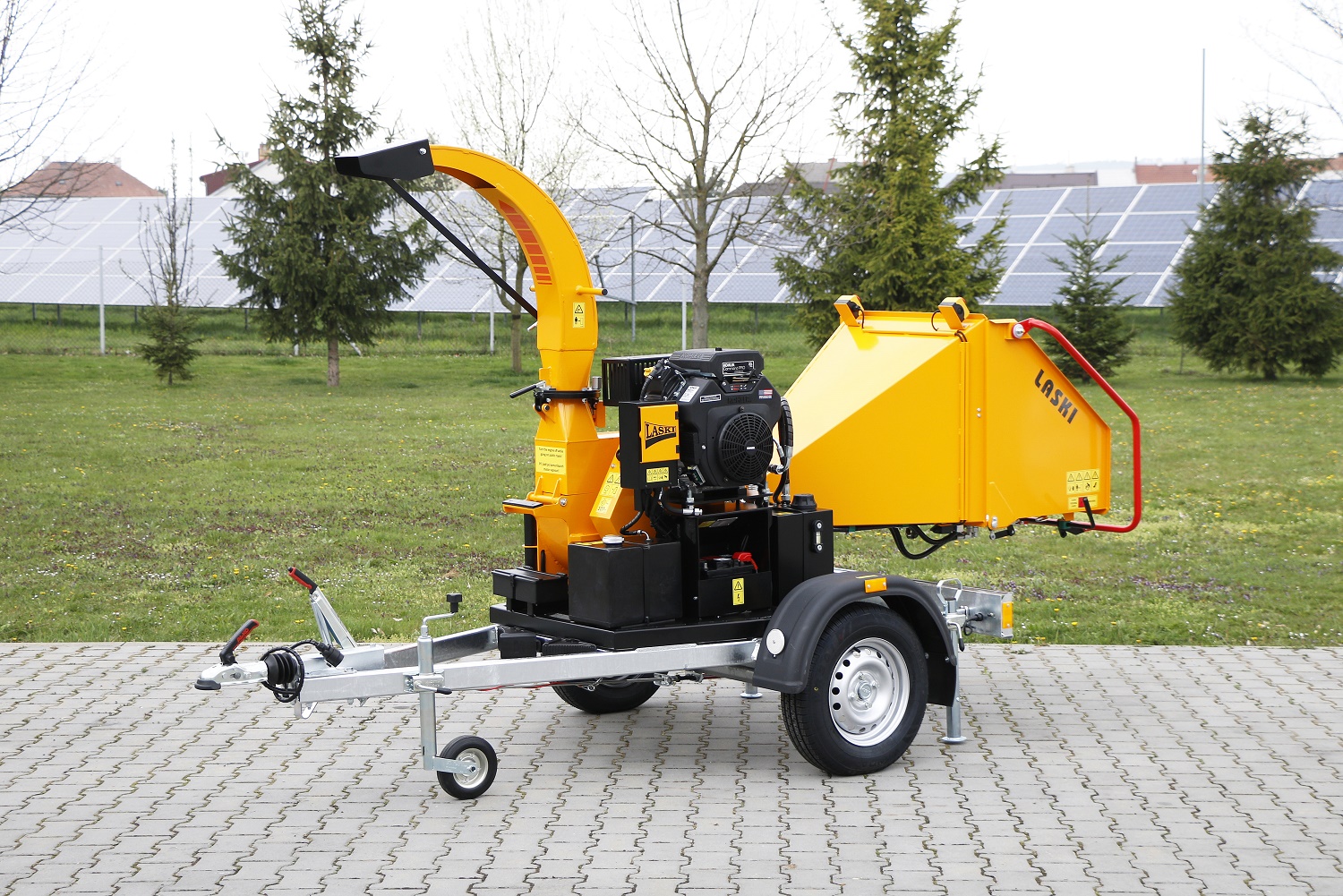

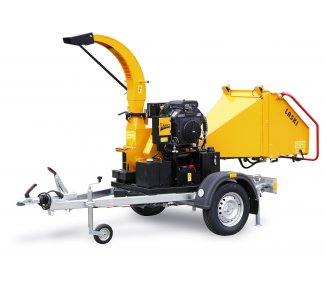

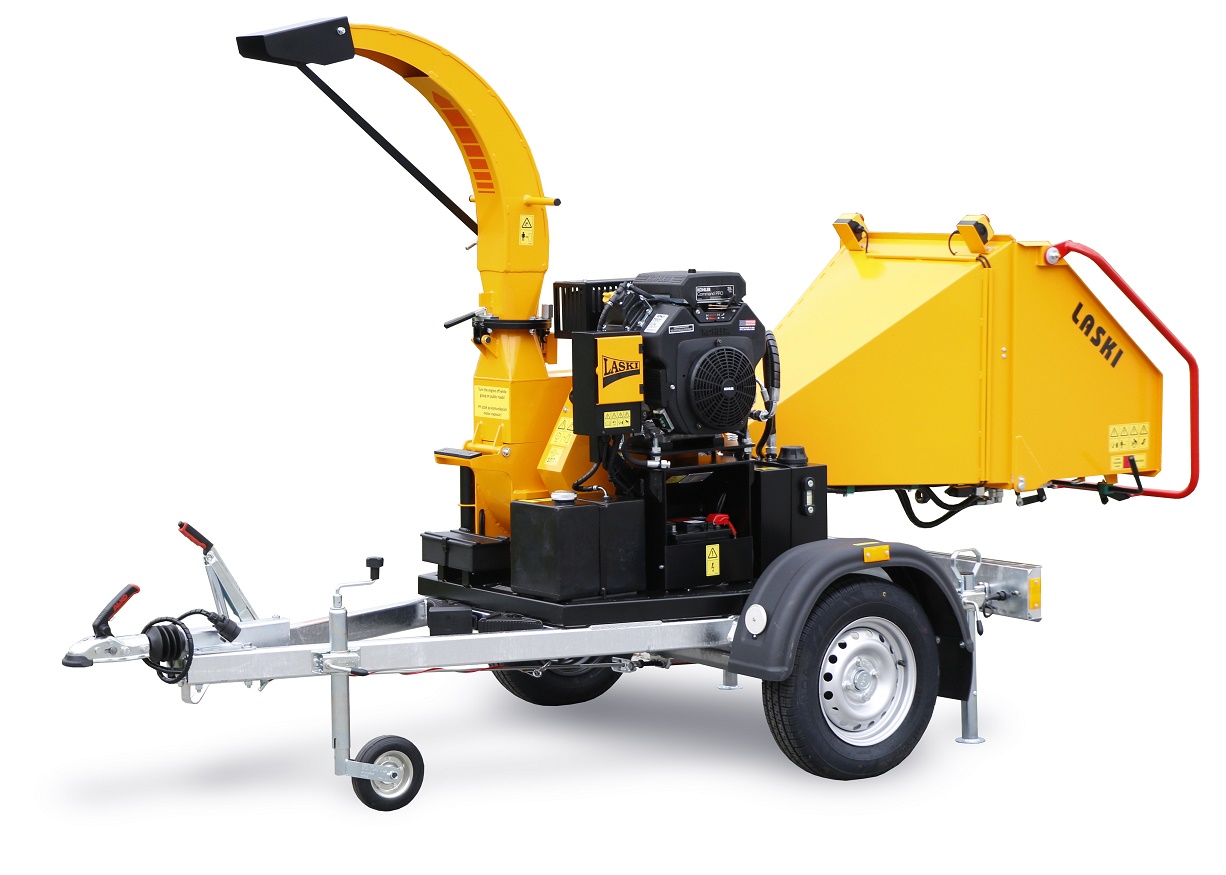

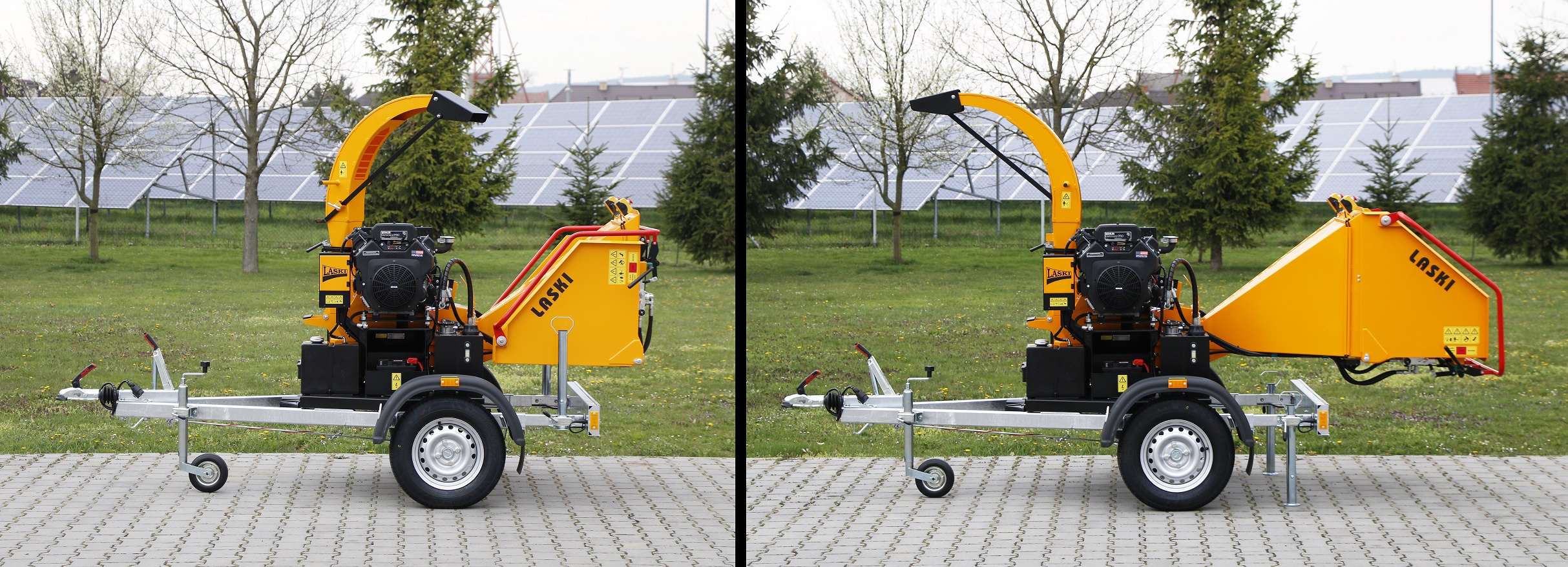

Chipper with petrol engine on braked chassis LS 100/27 CB
Chipper with petrol engine on braked chassis

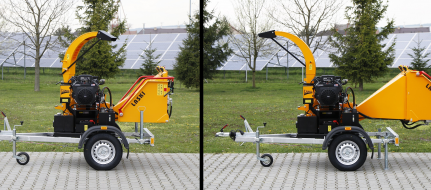

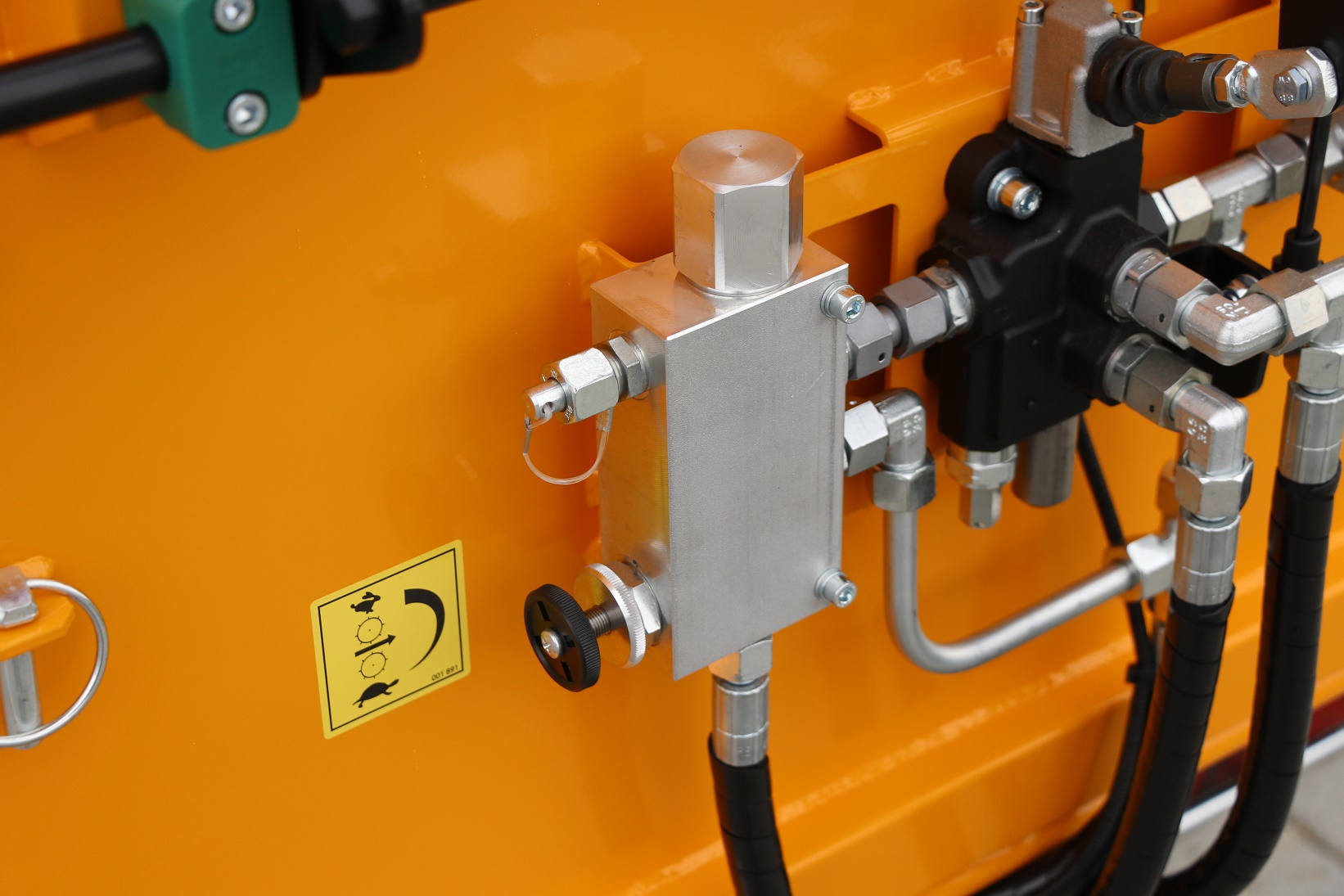

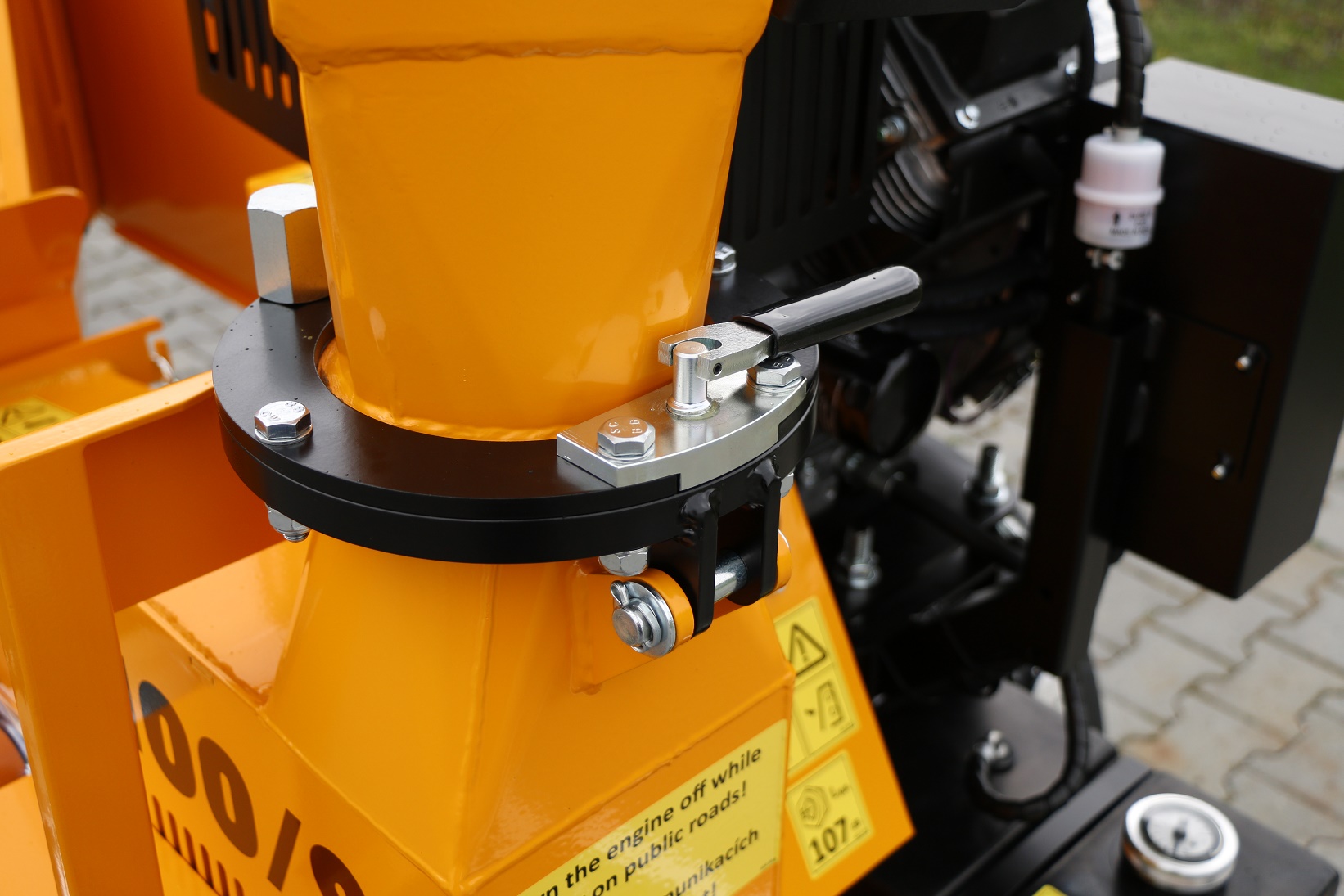

The chipper LS 100/27 CB is designed for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass. It can dispose all these materials with diameters up to 100 mm. The chipper is also equipped with a loading roll hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also hour counter (daily/total), turnable and tiltable discharge duct and air-cooled 25 HP Kohler engine.

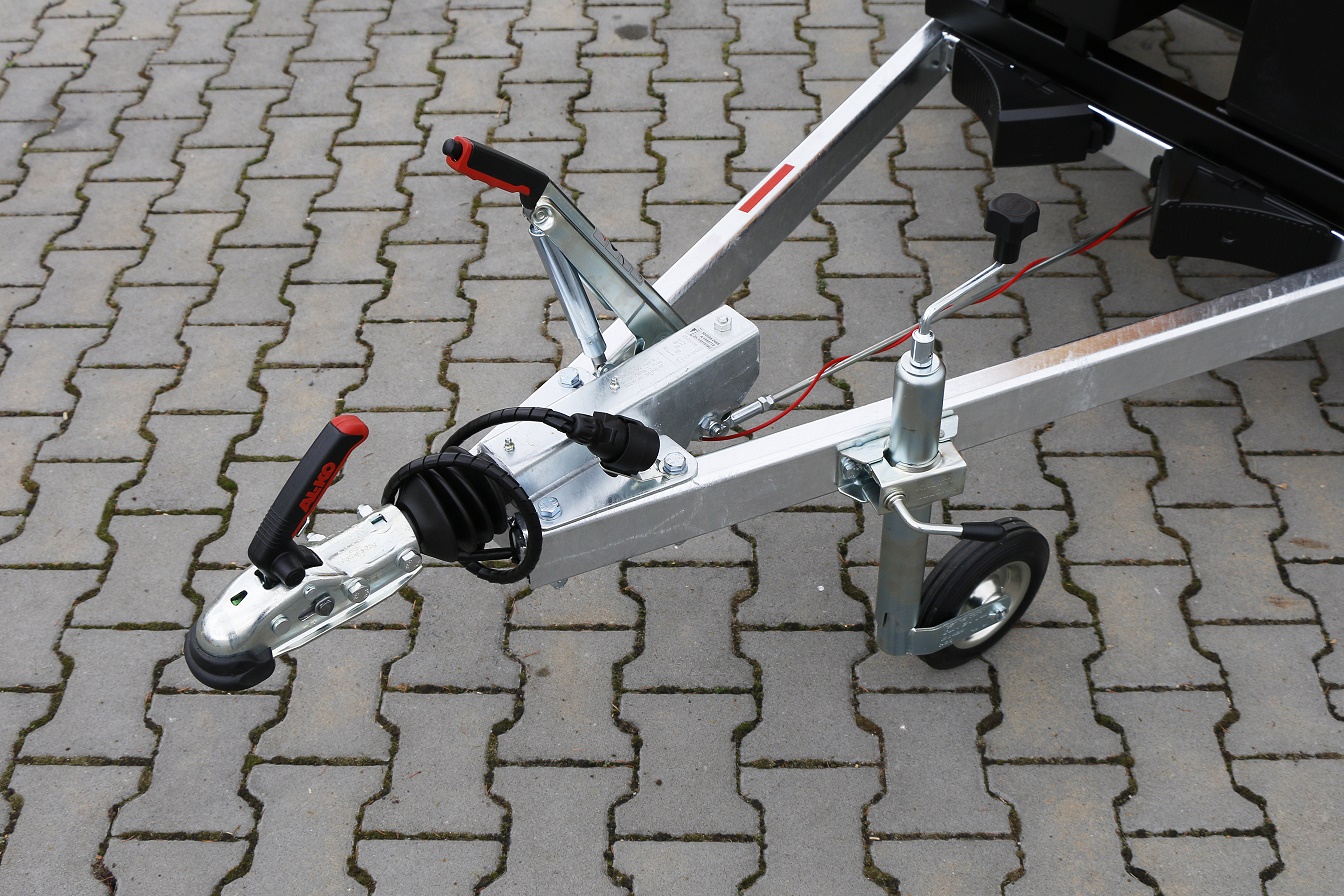

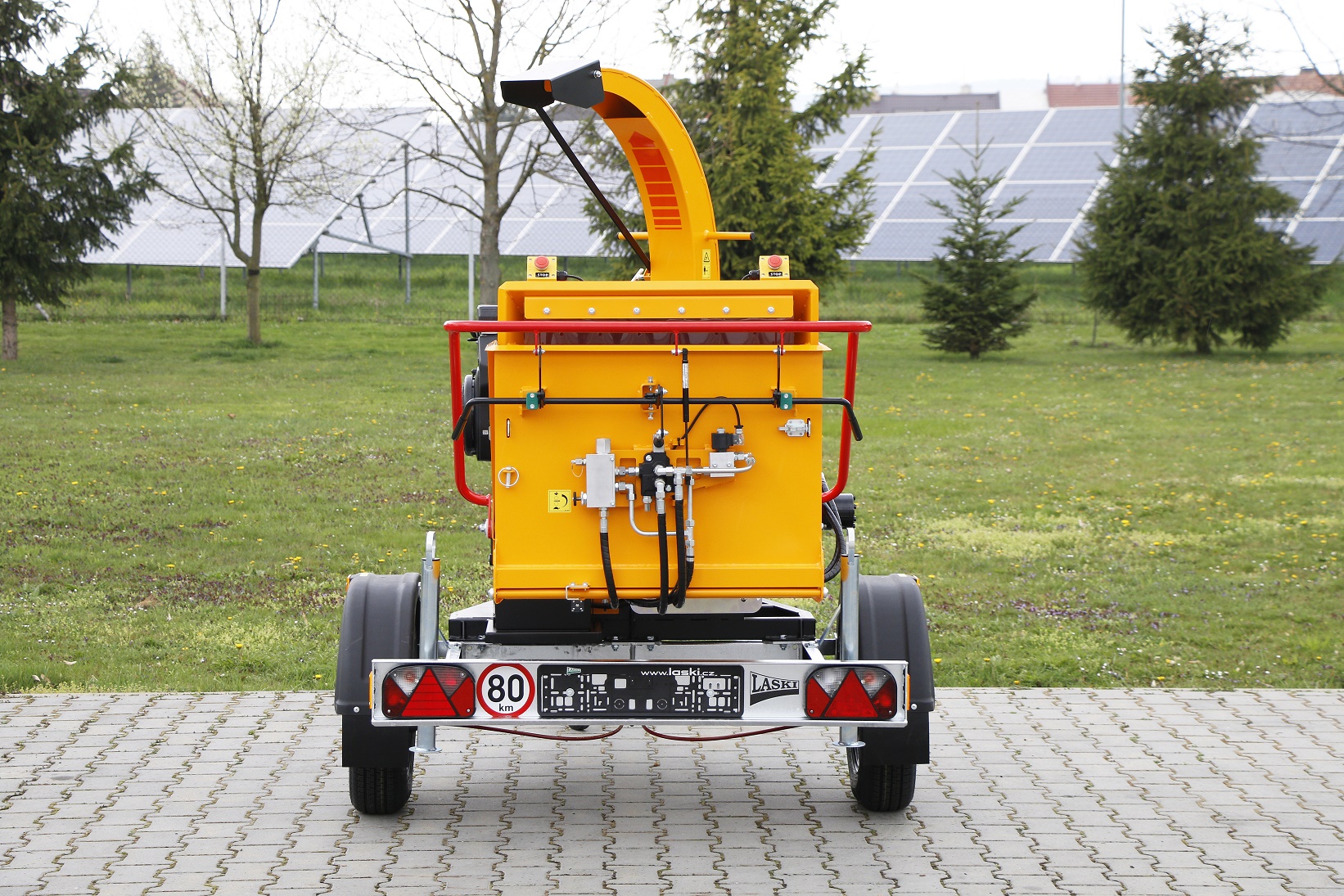

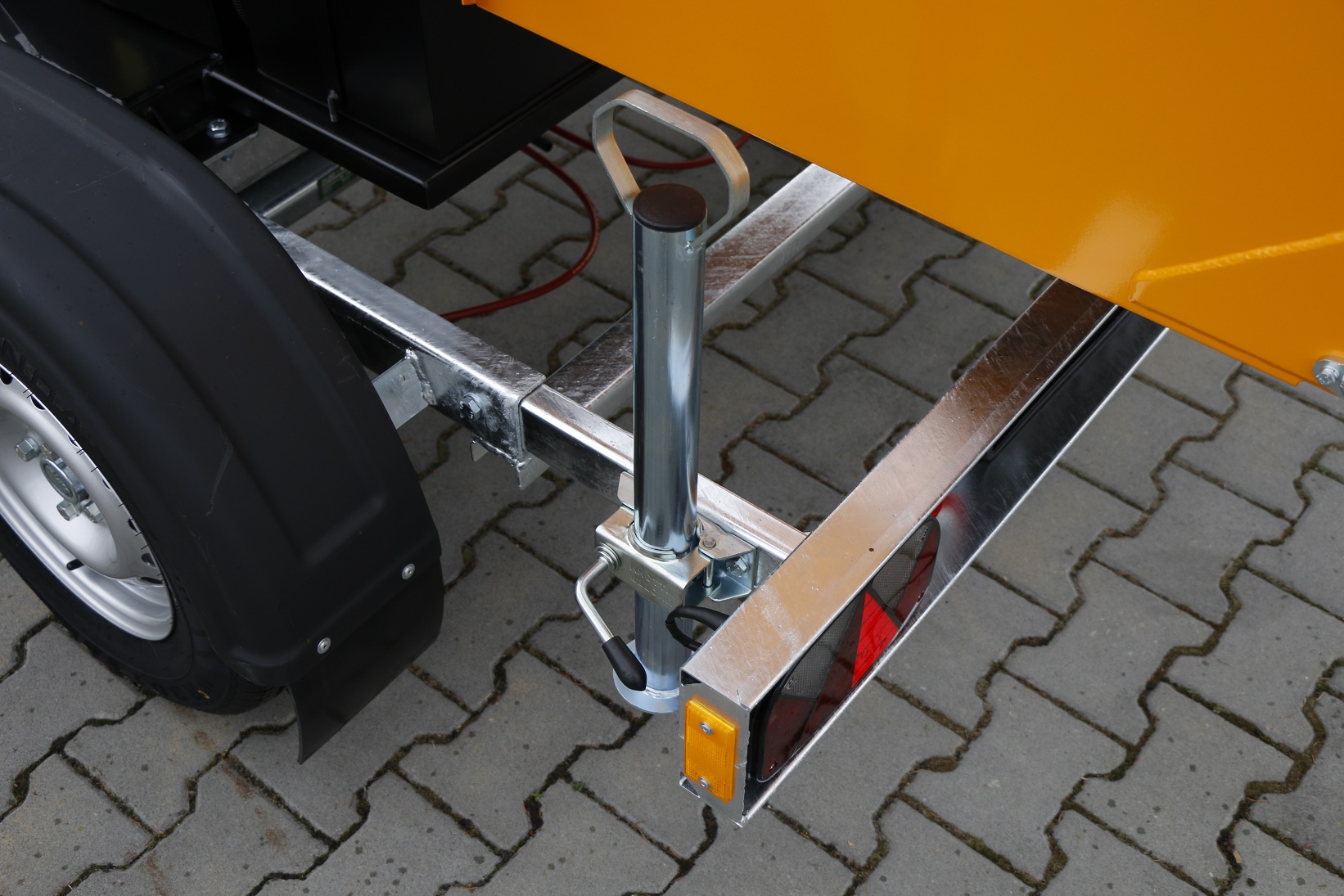

This chipper assembly, completed also with an overrun brake, can be coupled to towing vehicles (even passenger cars). For such a road train up to 3,5 t the driver should keep a driving licence at least of the group B.

Code: LS-7006

Unbraked variant LS 100/27 C. Code: LS-7001

3 ÷ 8 m3/h
630
Max. 100 mm

Technical specification

TECHNICAL SPECIFICATION
LS 100/27 CB
Length
3653 mm, 3130 (transport)
Width
1595 mm
Height
2080 mm
Weight
630 kg
Load
3 ÷8 m3/hr
Fuel consumption
7,0 l/hr
Max. Recommended branch diameter
do 100 mm (4")
CUTTING HEAD
Diameter
466 mm
Blades
4
Lenght of chip
11 mm

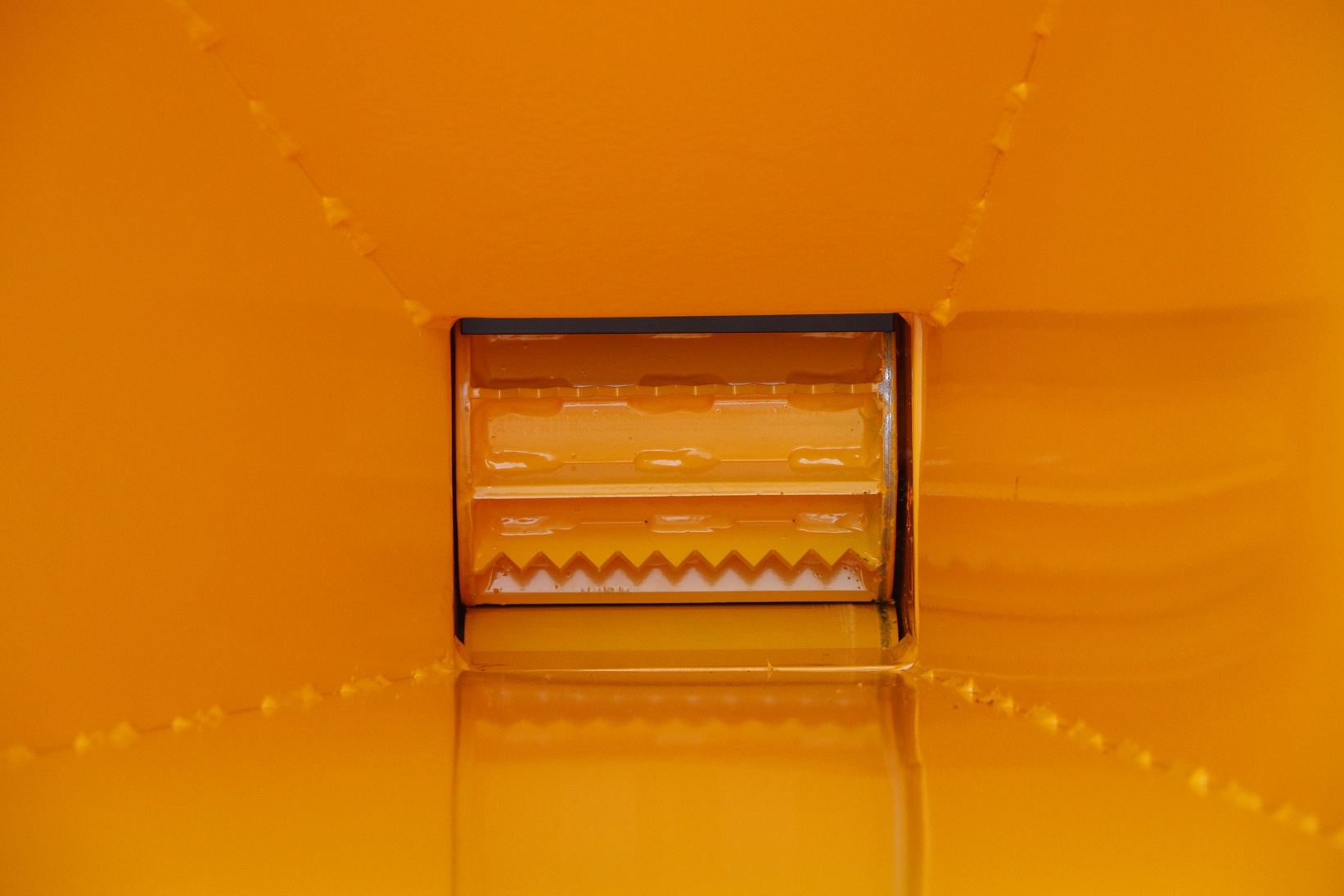

FEEDING DEVICE
Feeding hole size (BxH)
180 x 140 mm
Number of rolls
2 (uper roll driven)

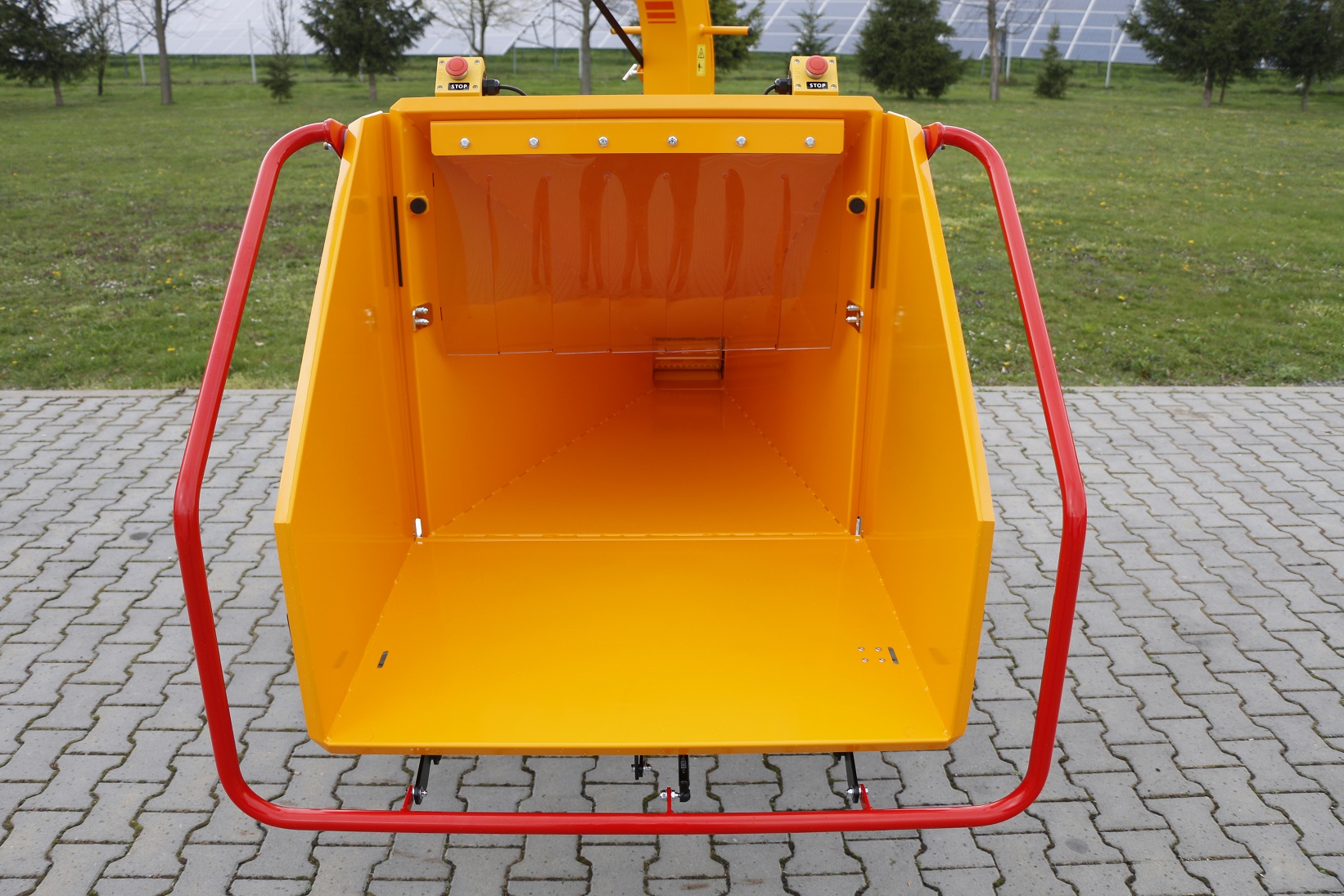

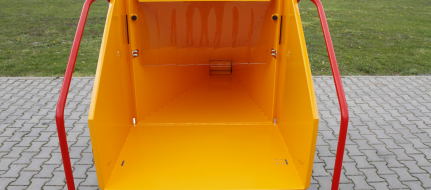

HOPPER
Feeding profile(BxH)
800 x 735 mm

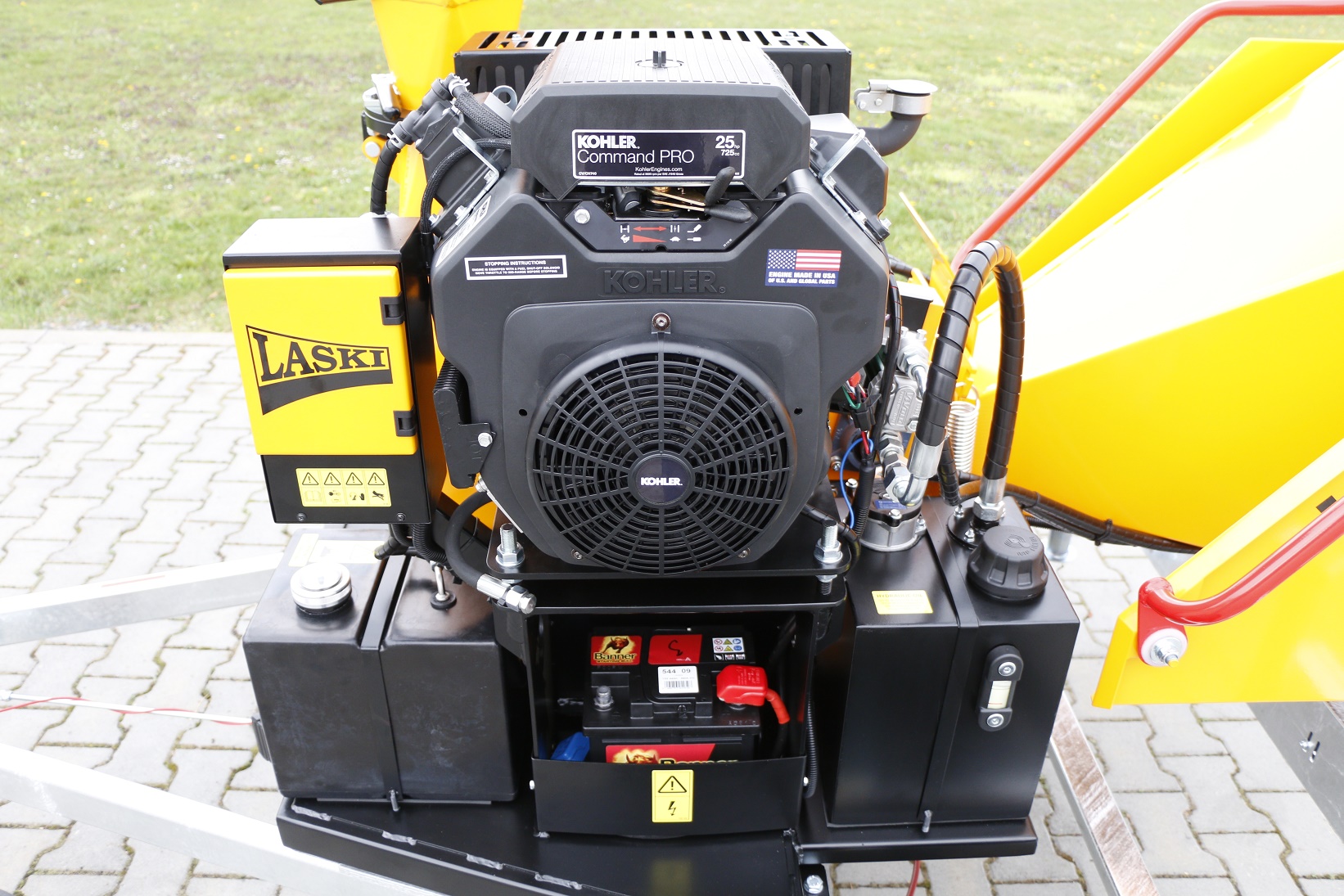

ENGINE
KOHLER CH 740 S
Power output
18,6 kW (25 HP)
Fuel
gasoline NATURAL 95
Fuel tank capacity
16 l
WORK SAFETY ELEMENTS

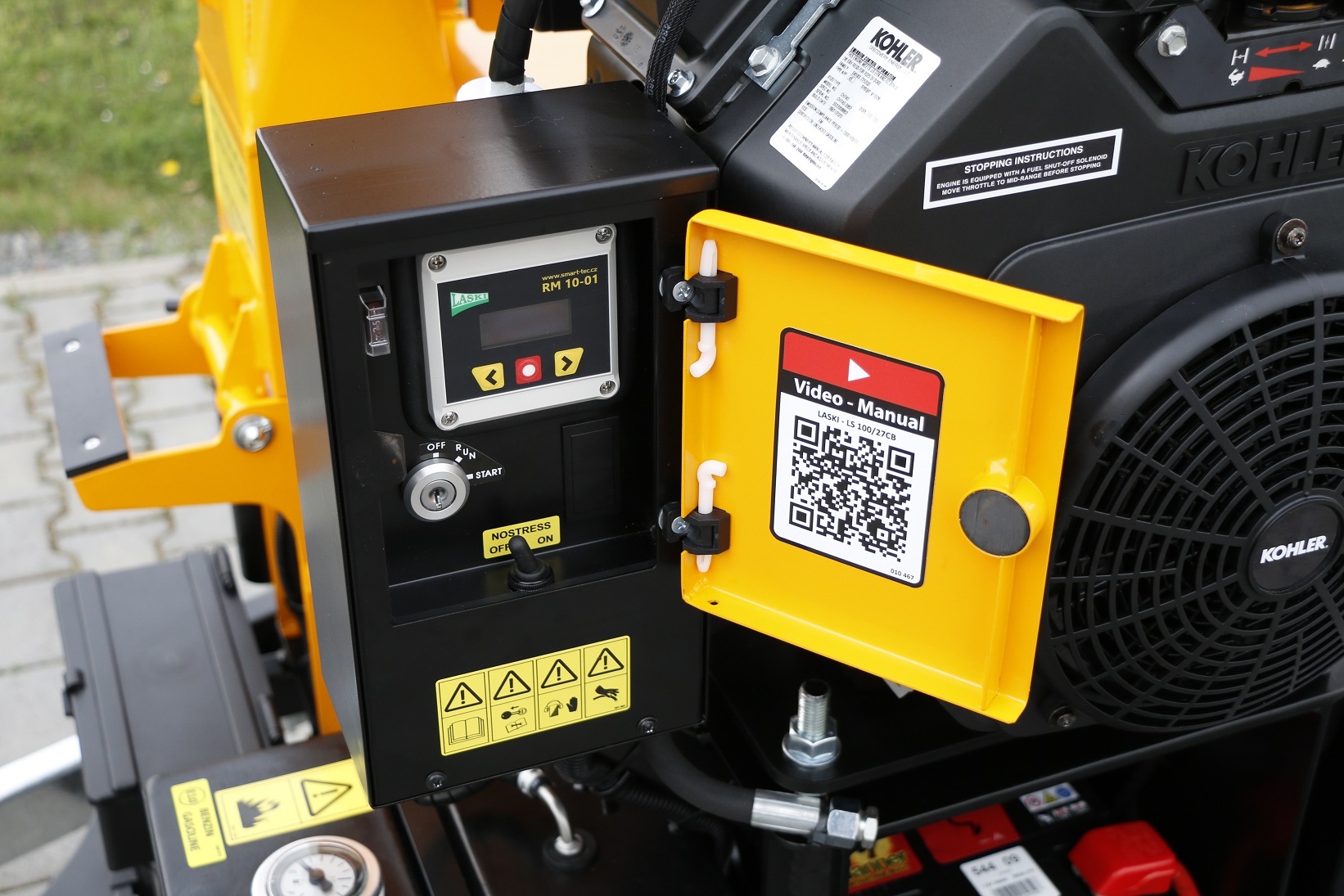

Machine-hour meter, master power switch, safety grip, overrun brake
