Jib-mounted stump cutter powered hydraulically FZ 465

Jib-mounted stump cutter powered hydraulically FZ 465

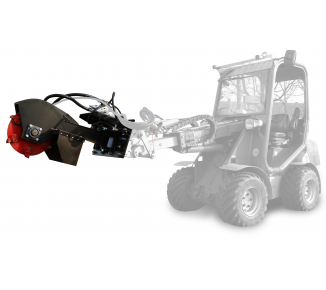

Our jib-mounted stump cutter FZ 465 is intended for cutting of above- and under-ground stump parts. It is designed for attachment to a hydraulic jib of building machines equipped with a corresponding fixing device. Various fixing devices are available optionally. Hydraulic hoses and carrier hitch are not included.

Code: F-307 000

> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
FZ 465
Length
1050 mm
Width
710 mm
Heigth
750 mm
Weight
200 kg
Machine power
ca 0,5 m3/h
CUTTING HEAD
Cutting Head diameter
470 mm
Number of blades
12
CUTTING RANGE
Above ground
Along parameter porter
Under ground
200 mm
Cutting width
900 mm
Stump diameter
Unlimited
ENGINE
HYDROMOTOR
Presure
200 bar
Flow
50 ÷ 100 l/min

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
