LS 160 P Track

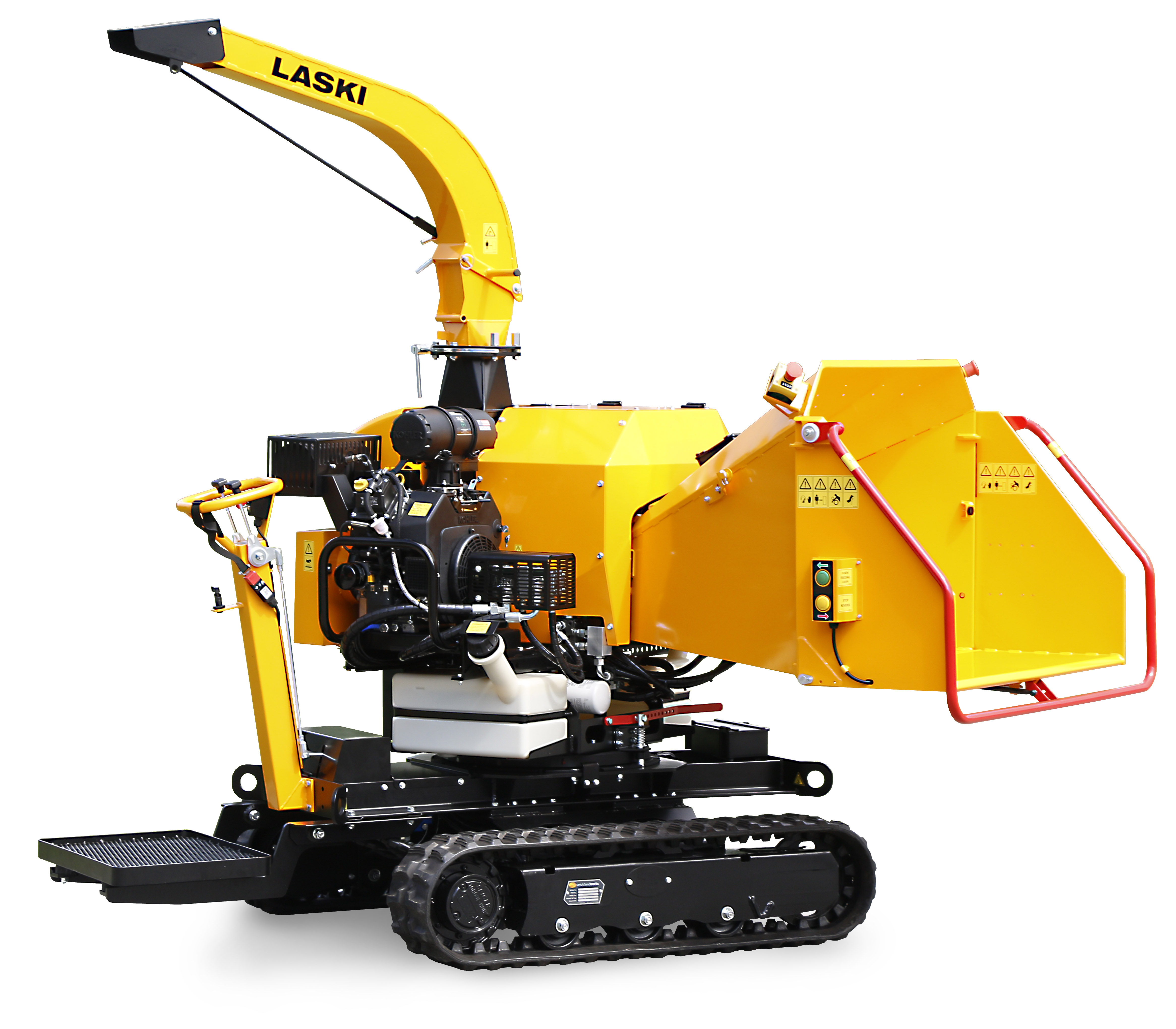

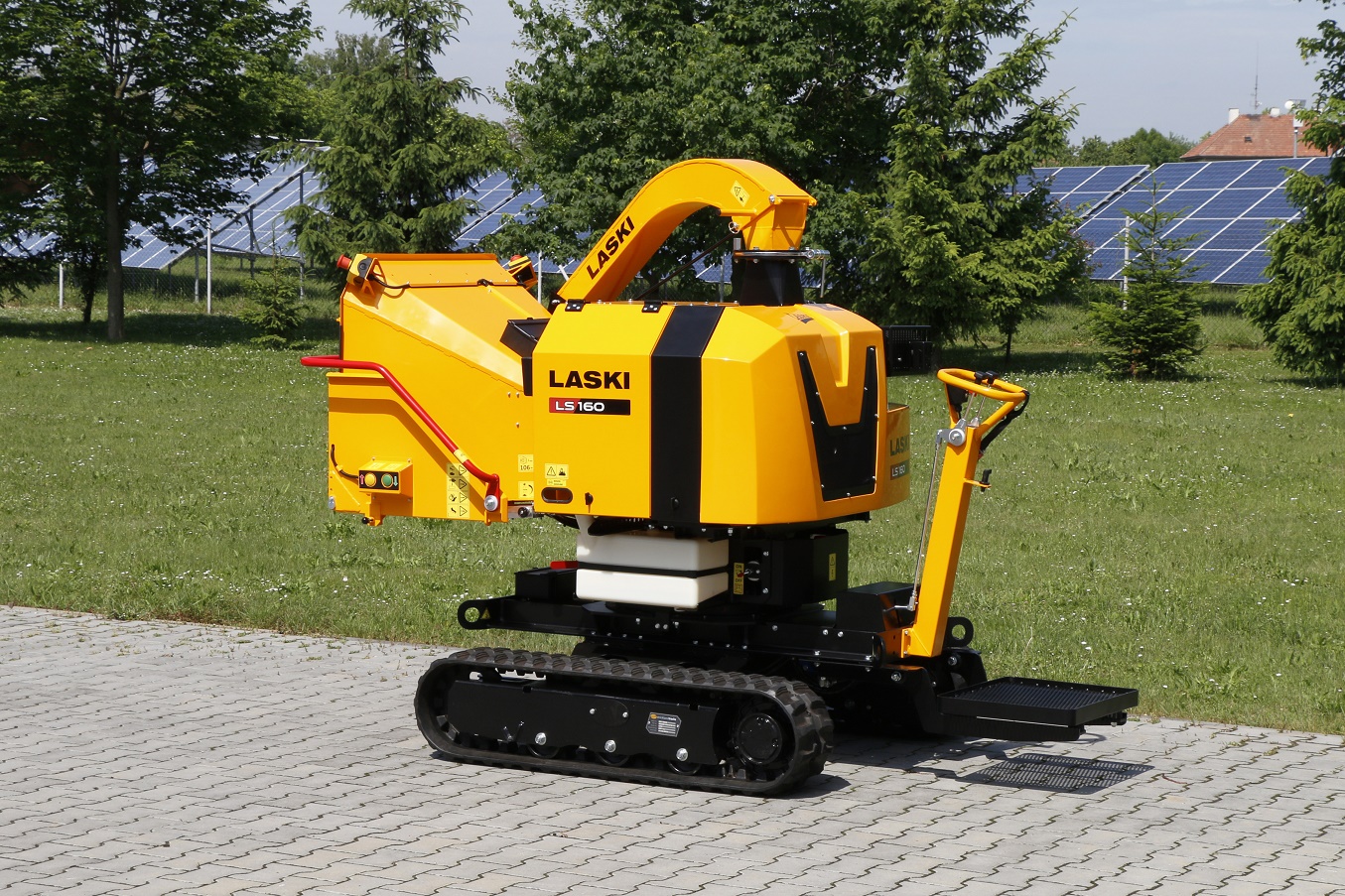

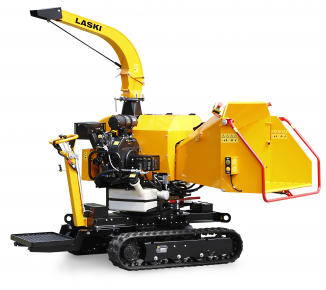

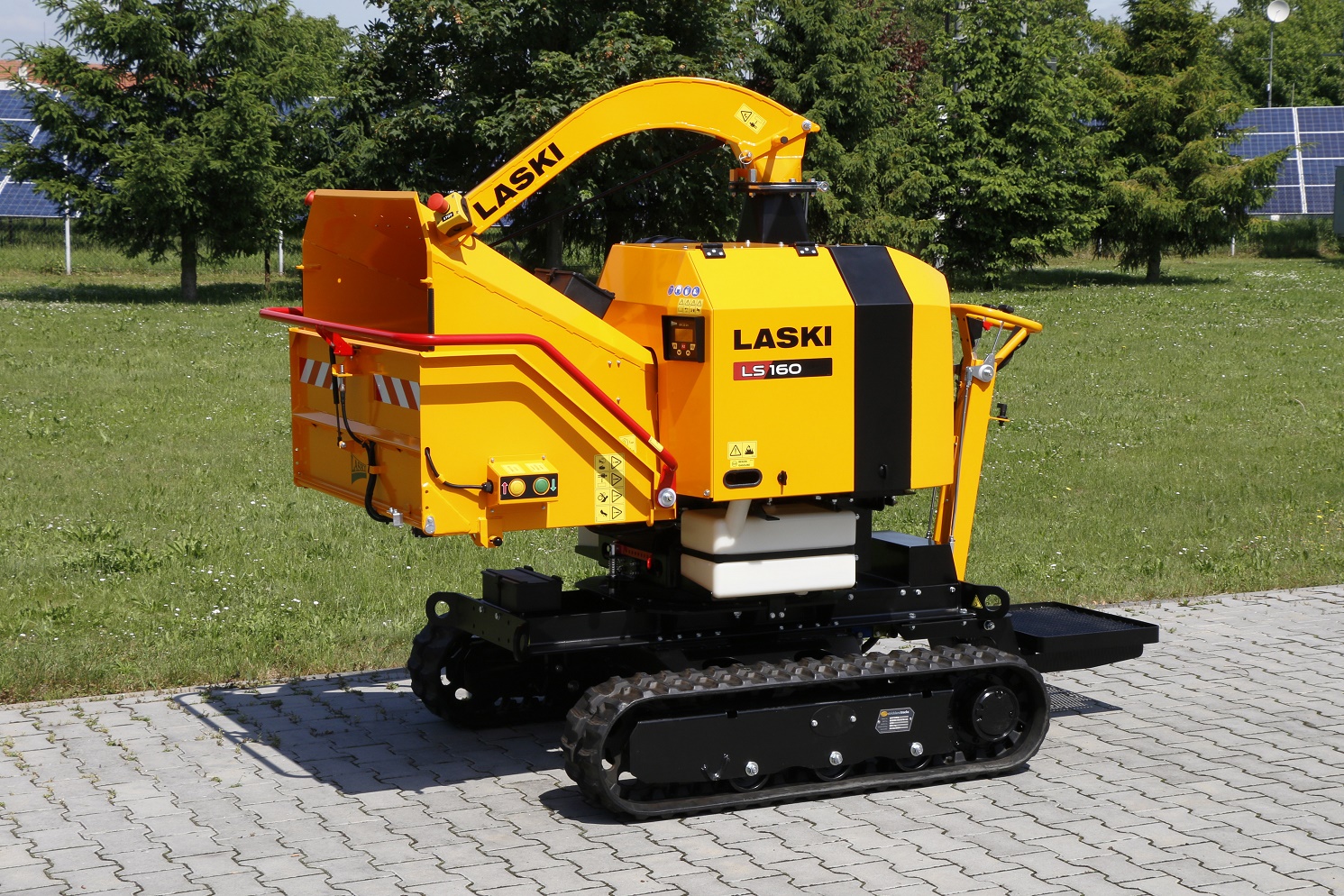

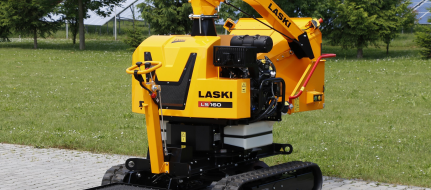

Powerful chipper on tracked chassis with petrol engine LS 160 P Track
Powerful chipper on tracked chassis with petrol engine

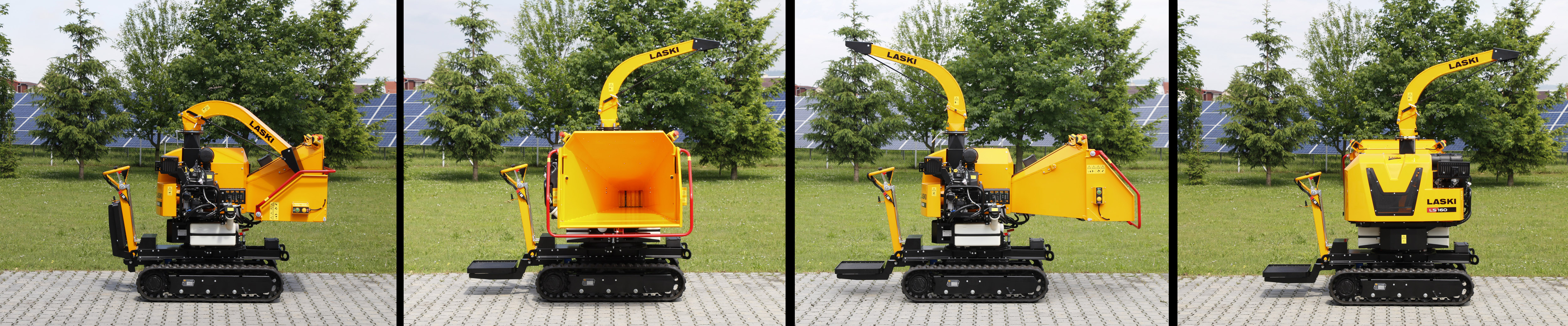

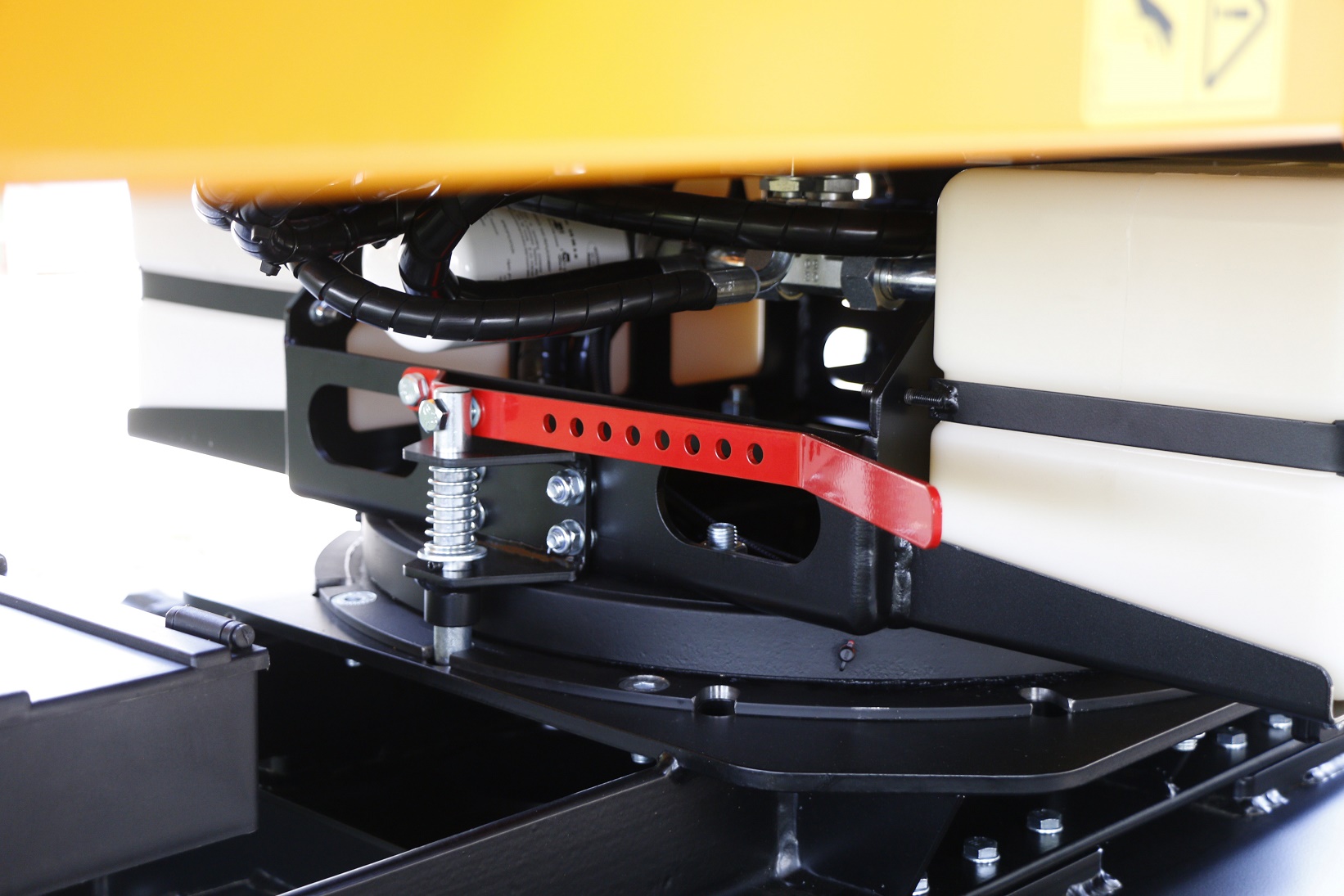

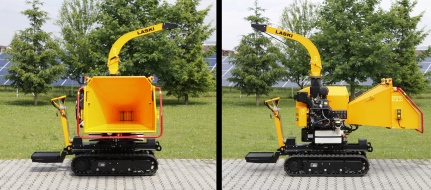

The chipper LS 160 P Track is a compact machine intended for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass, for chipping of redundant timber such as sticks, deals, pickets etc. and also for manufacture of chips from aforesaid materials. It can dispose all these materials with diameters up to 160 mm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also an hour counter (daily/total) and an air-cooled 26,5 HP Kohler petrol engine with injection.

Code: LC-14502

LPG variant - LS160 PG Track. Code.: LC-16500

12 ÷ 16 m3/h
1200
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160 P Track
Length :
3000 mm (2385 přepravní)
Width :
1360 mm
Height :
2530 mm (1945 přepravní)
Weight :
1200 kg

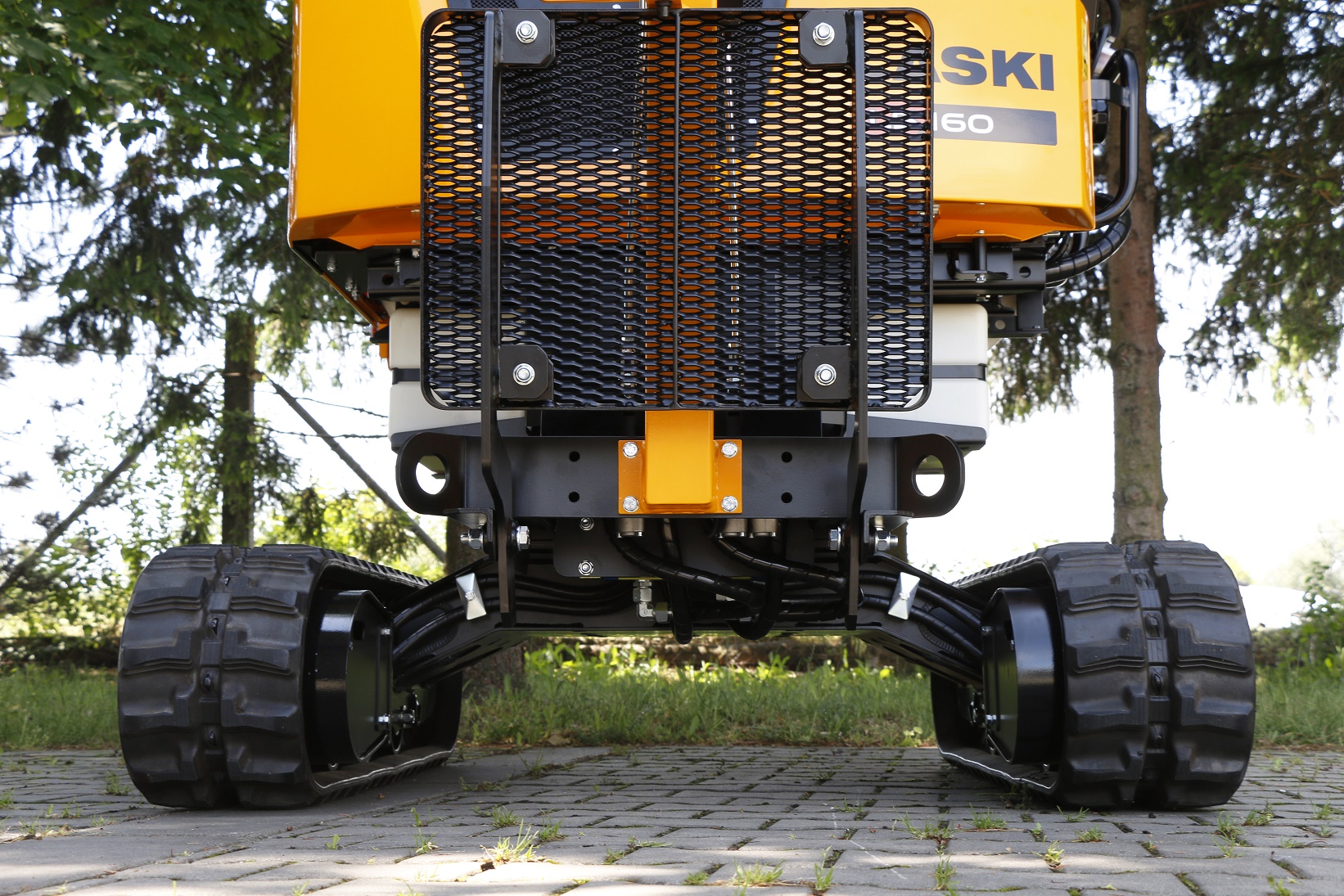

Undercarriage :
Track
Travel Speed :
3 km/h
Load :
12 ÷ 16 m3/hod
Fuel consumption :
4,5 ÷ 5 l/hod
Recommended branch-wood maximum diameter :
160 mm
CUTTING HEAD
Diameter :
600mm
Number of blades :
2
Length chips :
5 ÷ 15 mm
FEEDING DEVICE
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
2
HOPPER
Feeding profile(BxH) :
1040 x 800 mm

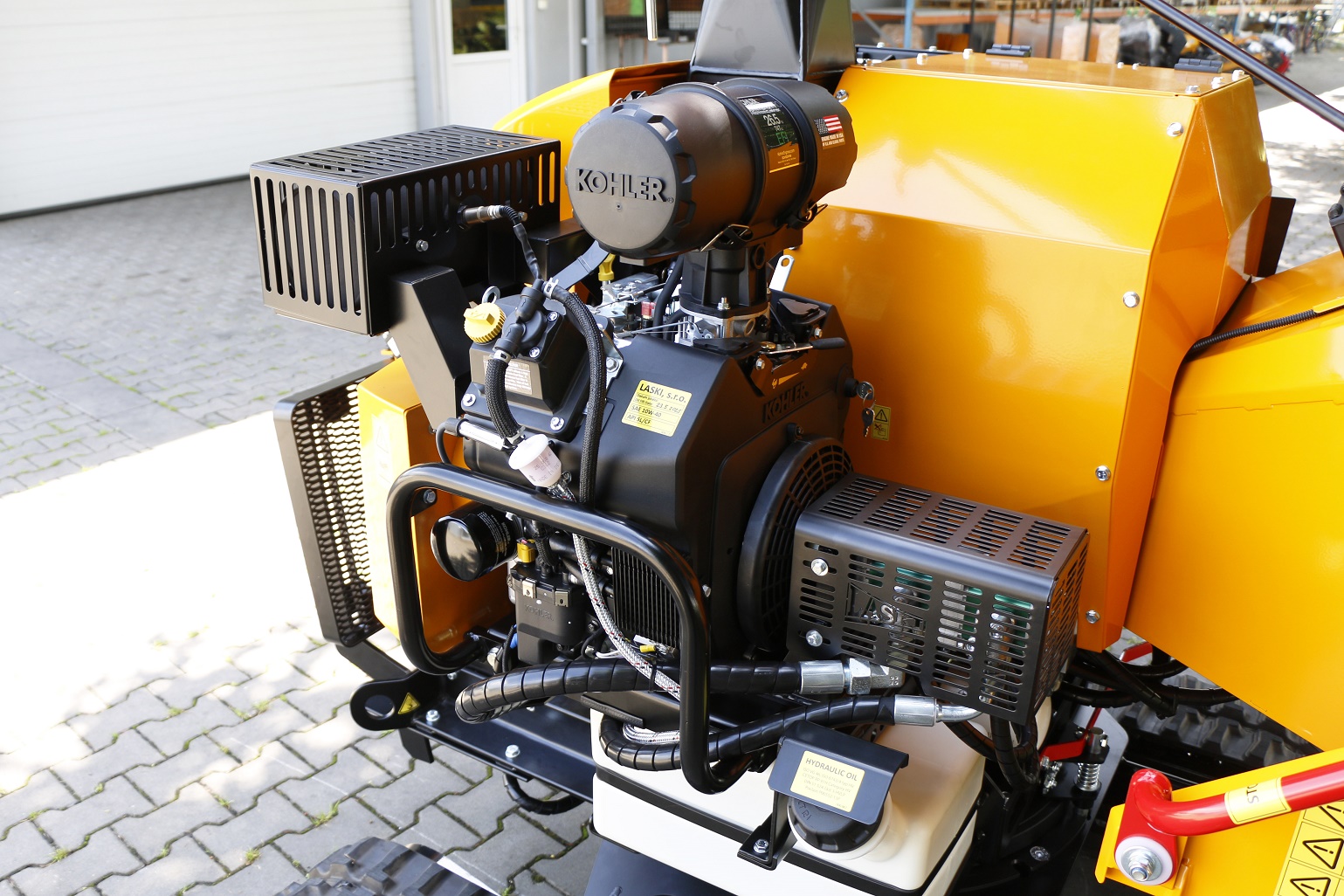

ENGINE
Kohler ECH 749
Power output :
19,8 kW (26,5 HP)
Fuel :
Petrol
Fuel tank capacity :
20 l
WORK SAFETY ELEMENTS
Machine-hour meter , charging indicator lamp , master power switch, safety grip
