LS 95/GX

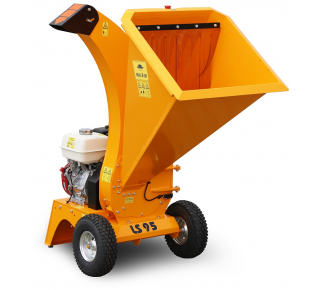

Chipper with Honda engine for gardening LS 95/GX
Chipper with Honda engine for gardening

The chipper LS 95/GX can be characterized by high power output and simple design. It is powered by the Honda engine. Transmission of power from the engine to the chipping device is based on V-belt gearing. This chipper is equipped with two cutting blades and one fixed counter blade. It is very easy to check or to replace the blades: just after swinging the loading chute away. Loading of materials to be chipped between the loading rolls is realised by gravity only, i.e. there is no other mechanism required. Ergonomic controls and larger travelling wheels make any machine handling very easy. No problem to move the machine on uneven ground or to go over curbstones.

Code: LZ-1101

Code: Tractor-mounted LZ-1107

1,6÷2,8 m3/h
130
Max. 80 mm

Technical specification

Specification
LS 95/GX
Lenght
1530 mm
Width
800 mm
Height
1580 mm
Weight
130 kg
Load
1,6 ÷ 2,8 m3/per hour
Fuel consumtion
1,8 l/per hour
Max. diameter
80 mm
Cutting head
Diameter
355 mm
Number of blades
2
Lenght of chip
4 ÷ 6 mm
Hopper
Turning possibility
-
Feeding profile
640 x 620 mm
Engine
Honda GX 390
Power output
8,7 kW (11,7 HP) @ 3600 rpm
Fuel
Natural 95
Fuel tank capacity
6,1 l
