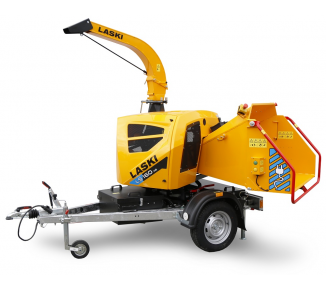

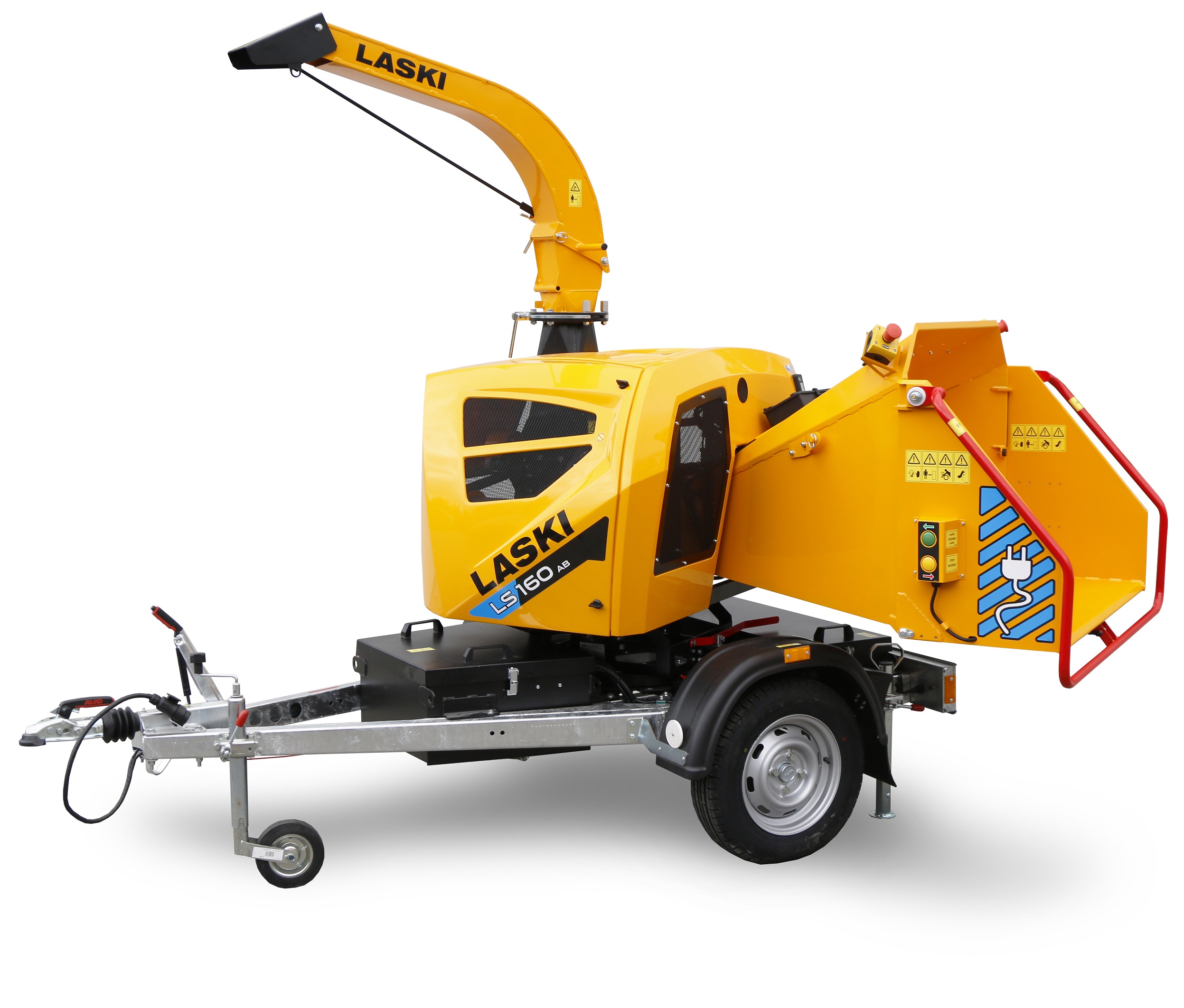

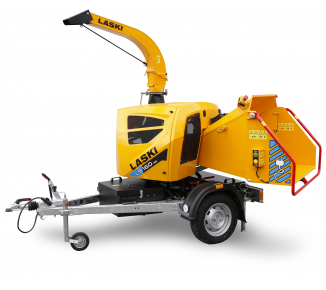

Powerful BATTERY-powered wood chipper LS 160 AB

Powerful BATTERY-powered wood chipper LS 160 AB

The LS 160 AB chipper is the first fully electric battery-powered compact machine for the disposal of wood waste, branches with leaves and needles, trunks and other above-ground plant parts up to 160 mm in diameter. The chipper is emission-free and contains no hydraulic fluid. Robust Lithium-Iron batteries with a safe voltage of 48 V are used as the power source. The machine has an integrated 230 V charger as well as an inverter for optional powering 230 V electrical equipment such as a chainsaw. For towing, a Group B driving licence with B96 extension is sufficient (no written test).

Code: LC-15000

12 ÷ 16 m3/h
995
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160 AB
Length :
3490 mm; (3160 mm - transport)
Width :
1590 mm
Height :
2500 mm ; (1920 mm - transport)
Weight :
995 kg
Load :
12 ÷16 m3/hod
Recommended branch-wood maximum diameter :
160 mm
CUTTING HEAD
Diameter :
600 mm
Number of blades :
2
Length chips :
5 ÷ 15 mm
FEEDING DEVICE
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
2
HOPPER
Turning possibility :
360° - 12 positions
Feeding profile(BxH) :
1040 x 800 mm
ENGINE
ASHWOOD IPM-200-66
Power output :
20-32 kW
Capacity Battery LiFePO4 Cell:
48 V (400 Ah)

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
