TR 60/14 HC

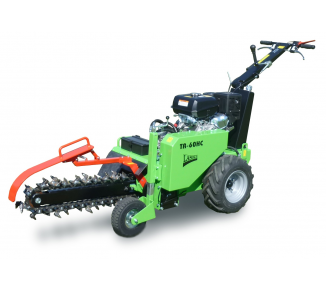

Trencher with hydrodrive and Kohler engine TR 60/14 HC
Trencher with hydrodrive and Kohler engine

The trencher TR 60 HC facilitates trenching works at cables and lines lying in gardens, school yards and parks without moving to much earth. The final trench is up to 60 cm deep with a plain and clean unvaried profile given by the cutting chain width. Its working speed depends on the soil structure. It is possible to make trenches in soils even with stones up to 50 mm. It is equipped also with an own hydrodrive for maximum user's comfort while trenching. The installed travel gear enables to adapt its working speed to final trenching quality.

Code: DR-02016

100 mm
680 mm

Technical specification

TECHNICAL SPECIFIKATION
TR 60/14 HC
Length
2220 mm (transport 1650 mm)
Width
785 mm
Height
900 mm (transport 1080 mm)
Weight
293 kg
Work speed
20 – 180 m/h
Transport speed
2,8 km/h
TRENCH DIMENSIONS
Trench depth
680 mm
Trench width
100 mm
Number of pins
27
ENGINE
KOHLER CH 440
Power output
10,4 kW (14 HP)
Fuel
GASOLINE (E10)
Fuel tank capacity
7 l
Start
Electric
NOT INCLUDED
Traction wheel - Right
DR-02920
Traction wheel - Left
DR-02925
