Stump cutter on tracked chassis hand-operated with an environmentally-friendly engine with fuel injection. P 38 M - EFI

Stump cutter on tracked chassis hand-operated with an environmentally-friendly engine with fuel injection. P 38 M - EFI

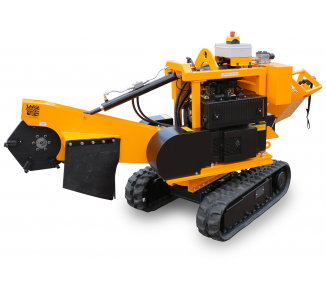

Our stump cutter P 38 is designed for cutting of above- and under-ground stump parts. Thetracked chassis is wheel-track-adjustable. Its low centre of gravity provides high stability of the machine also under worse field conditions with maximum work safety. Minimum track base makes also limited spaces and narrow sites more accessible. It can even pass through a narrow garden gate only 700 mm wide. This machine is equipped with an environmentally-friendly engine with fuel injection.

Code: P-38-GA-10

> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
P38M - EFI
Length
2490 mm
Width
670 - 970 mm
Height
1500 mm
Weight
1042 kg
Power output
1÷2 m³/hr
Fuel consumtion
6÷6,5 l/per hour
CUTTING HEAD
Cutterwheel diameter
510 mm (Laski) / 480 mm (MultiTip)
Number of teeth
18 (Laski wheel) / 6 x MultiTip (24)
CUTTING RANGE
Boom distance up
800 mm
Boom distance down
380 mm
Boom arc distance
1140 mm
ENGINE
KOHLER ECH 980
Output
28,3 kW (38 HP)
Fuel
GASOLINE (E10)
Tank capacity (Fuel)
17 l
Control
Manual
Travel Speed
4 km/h

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
