LS 160 DW Track M

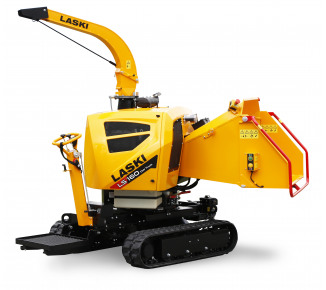

Powerful chipper on tracked chassis with diesel engine LS 160 DW Track M
Powerful chipper on tracked chassis with diesel engine

The chipper LS 160 DW Track M is a compact machine intended for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass, for chipping of redundant timber such as sticks, deals, pickets etc. and also for manufacture of chips from aforesaid materials. It can dispose all these materials with diameters up to 160 mm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also environmentally friendly water-cooled 25 HP Kohler diesel engine (EU Stage V, US Tire 4 Final).
Its tiltable frame enables to reach slopes with climbing ability up to 30°. The frame is completed also with an electrical cable winch and a towing bracket with a joint ball (ISO 50) for trailer coupling.

Code: LC-12002

12 ÷ 16 m3/h
Max. 160 mm

Technical specification

LS 160 DW Track M
Length :
2610 mm (2250 přepravní)
Width :
1440 mm
Height :
2535 mm (1950 přepravní)
Weight :
1335 kg
Undercarriage :
Travel Speed :
4 km/h
Load :
12 ÷ 16 m3/hod
Fuel consumption :
3,5 ÷ 4 l/hod
Recommended branch-wood maximum diameter :
160 mm
Diameter :
Number of blades :
Length chips :
5 ÷ 15 mm
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
Feeding profile(BxH) :
1040 x 800 mm
KOHLER KDW 1404 (EU Stage V, US Tire 4 Final)
Power output :
18,8 kW (25 HP)
Fuel :
Fuel tank capacity :
20 l

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.

Kohler Lombardini Page of model
