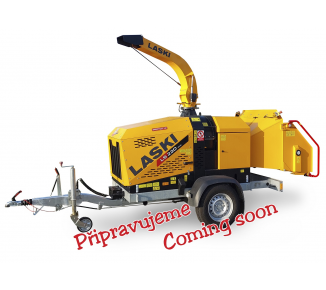

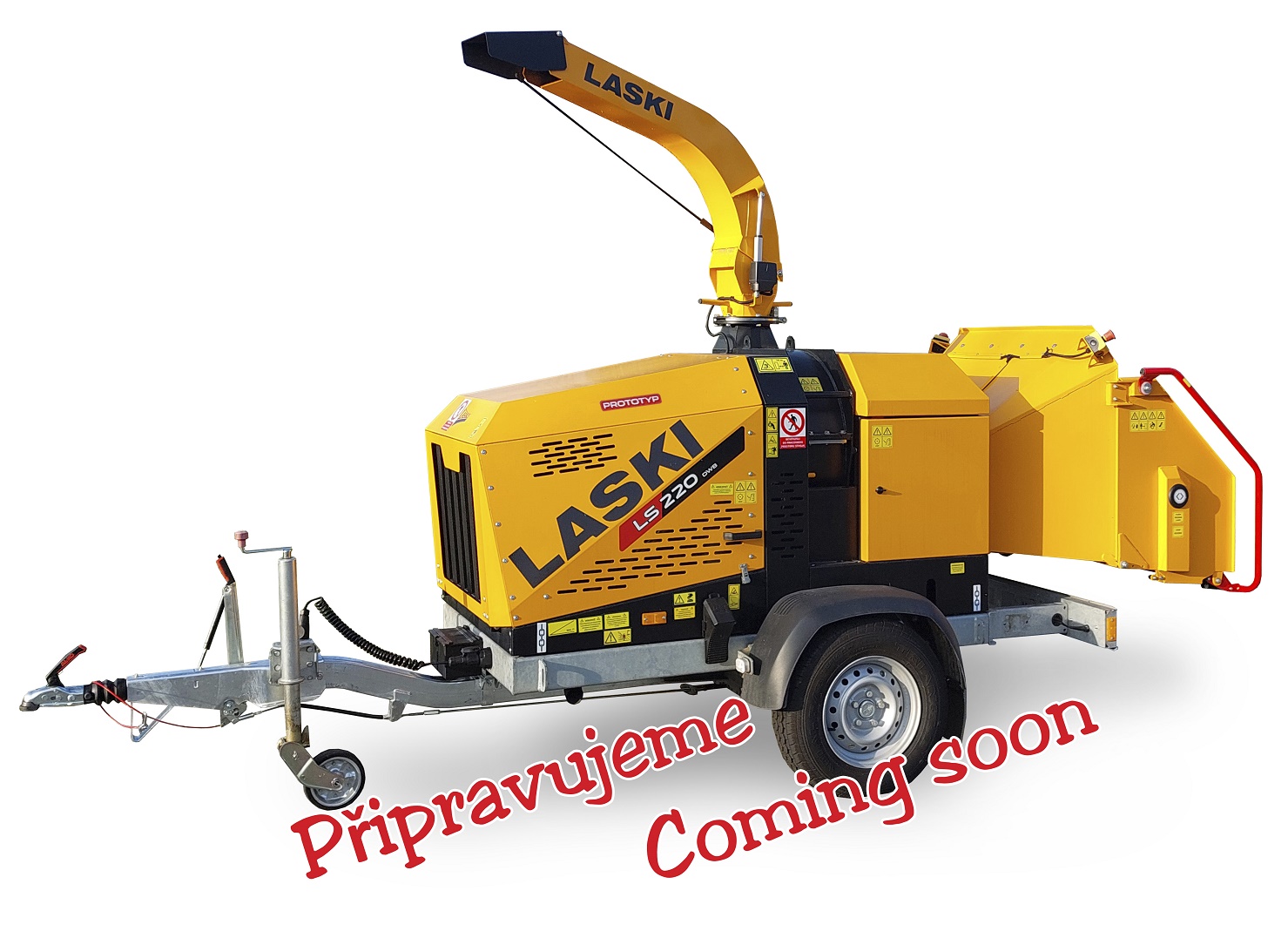

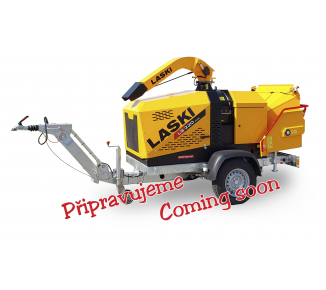

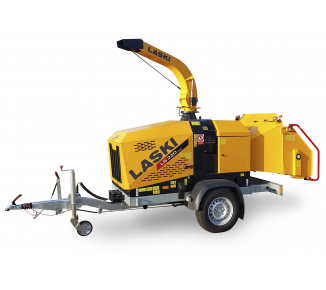

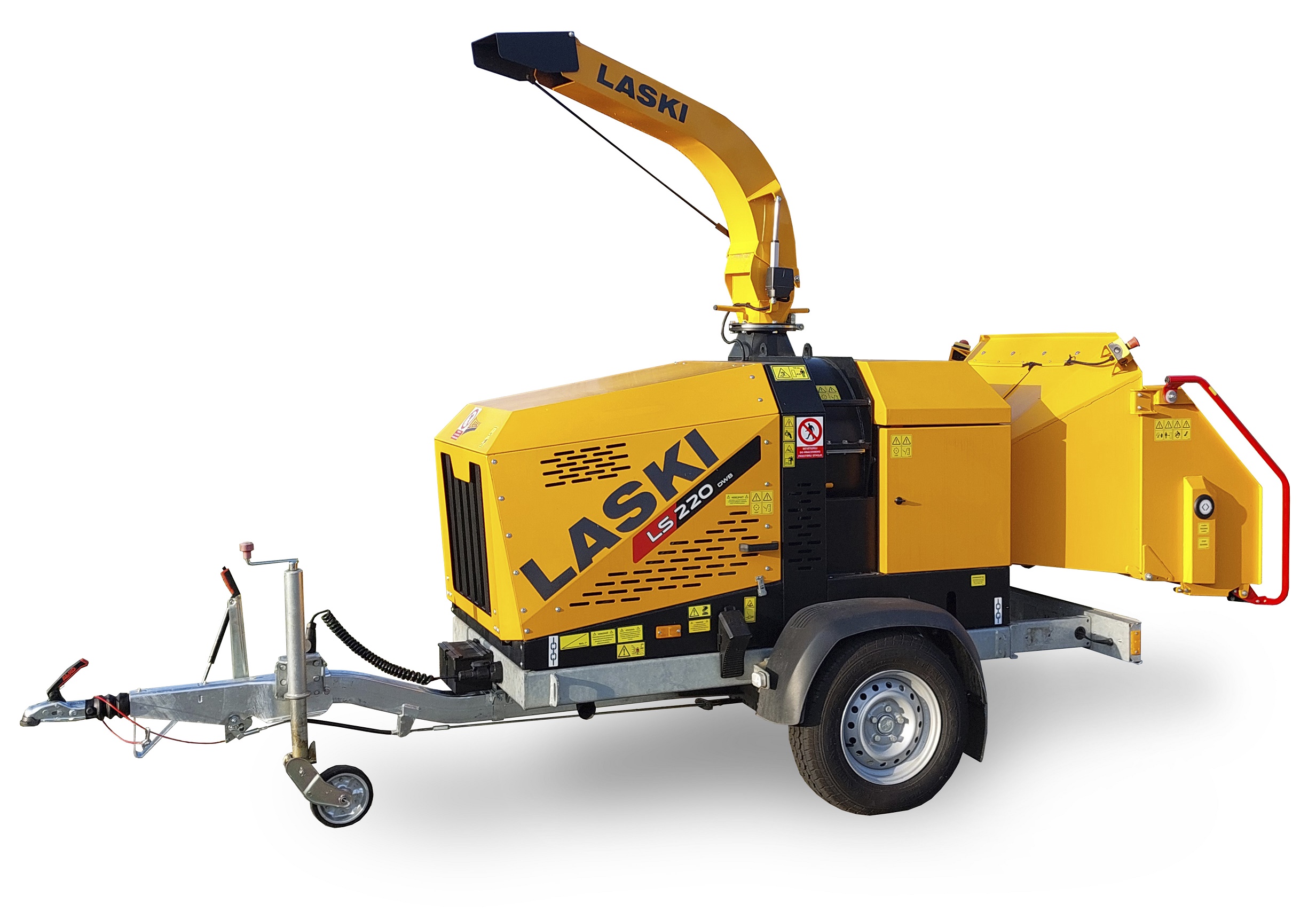

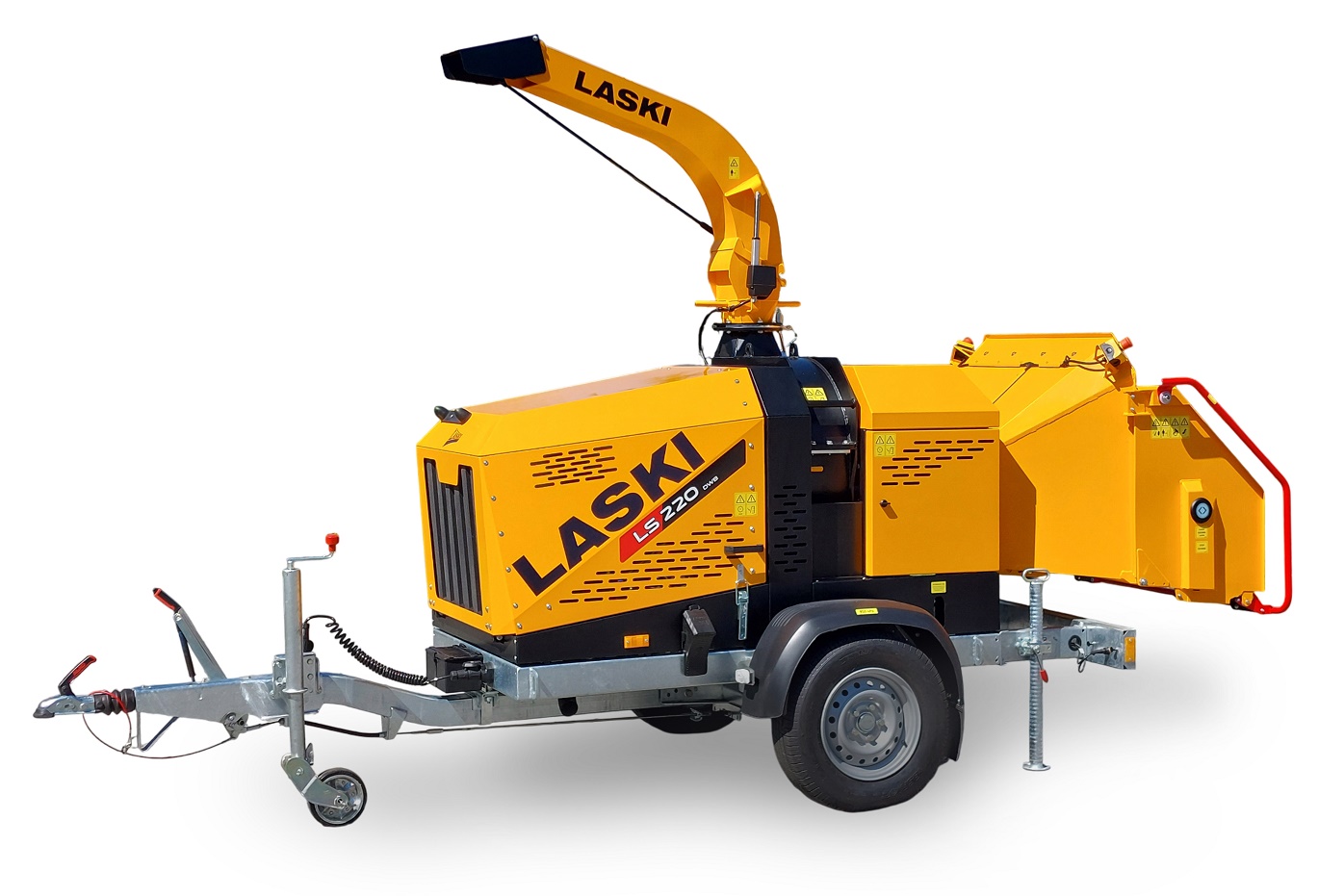

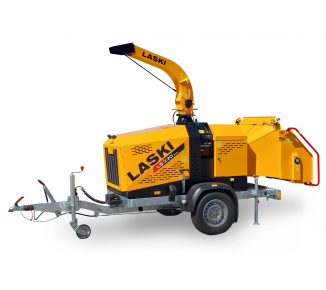

We are preparing a new powerful diesel wood chipper with a braked chassis. (56 HP) LS 220 DWB

We are preparing a new powerful diesel wood chipper with a braked chassis. (56 HP) LS 220 DWB

The upcoming LS 220 DWB wood chipper is even more powerful and productive than our existing wood chippers. This powerful compact wood chipper can handle a maximum feed diameter of up to 220 mm. It is designed for disposing of branches with leaves and needles, trunks, shrubs, bark, and other above-ground plant parts, or for producing wood chips. It is equipped with a powerful but efficient KOHLER KDI 1903 TCR diesel engine.

Code: Prototype

18 ÷ 20 m3/h
1800
Max. 220 mm

Technical specification

TECHNICAL SPECIFICATION
LS 220 DWB
Length :
4700 mm (transport 4200 mm)
Width :
1750 mm
Height :
2700 mm (transport 2120 mm)
Weight :
1800 kg
Load :
18 ÷20 m3/hod
Fuel consumption :
5 ÷ 6 l/hod
Recommended branch-wood maximum diameter :
220 mm
CUTTING HEAD
Diameter :
760 mm
Number of blades :
4
Length chips :
5 ÷ 20 mm
FEEDING DEVICE
Feeding hole size (B×H) :
260 x 225 mm
Number of rolls :
2
HOPPER
Turning possibility :
--
Feeding profile(BxH) :
1200 x 925 mm
ENGINE
KOHLER KDI 1903 TCR (EU Stage V, US Tire 4 Final)
Power output :
42 kW (56HP)
Fuel :
DIESEL (B7)
Fuel tank capacity :
50 l

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
