LS 160 PB

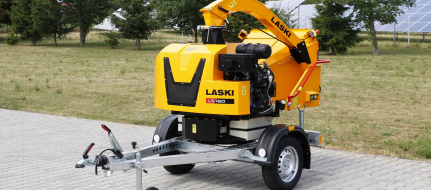

Powerful chipper with petrol engine on braked chassis (26,5 HP) LS 160 PB
Powerful chipper with petrol engine on braked chassis (26,5 HP)

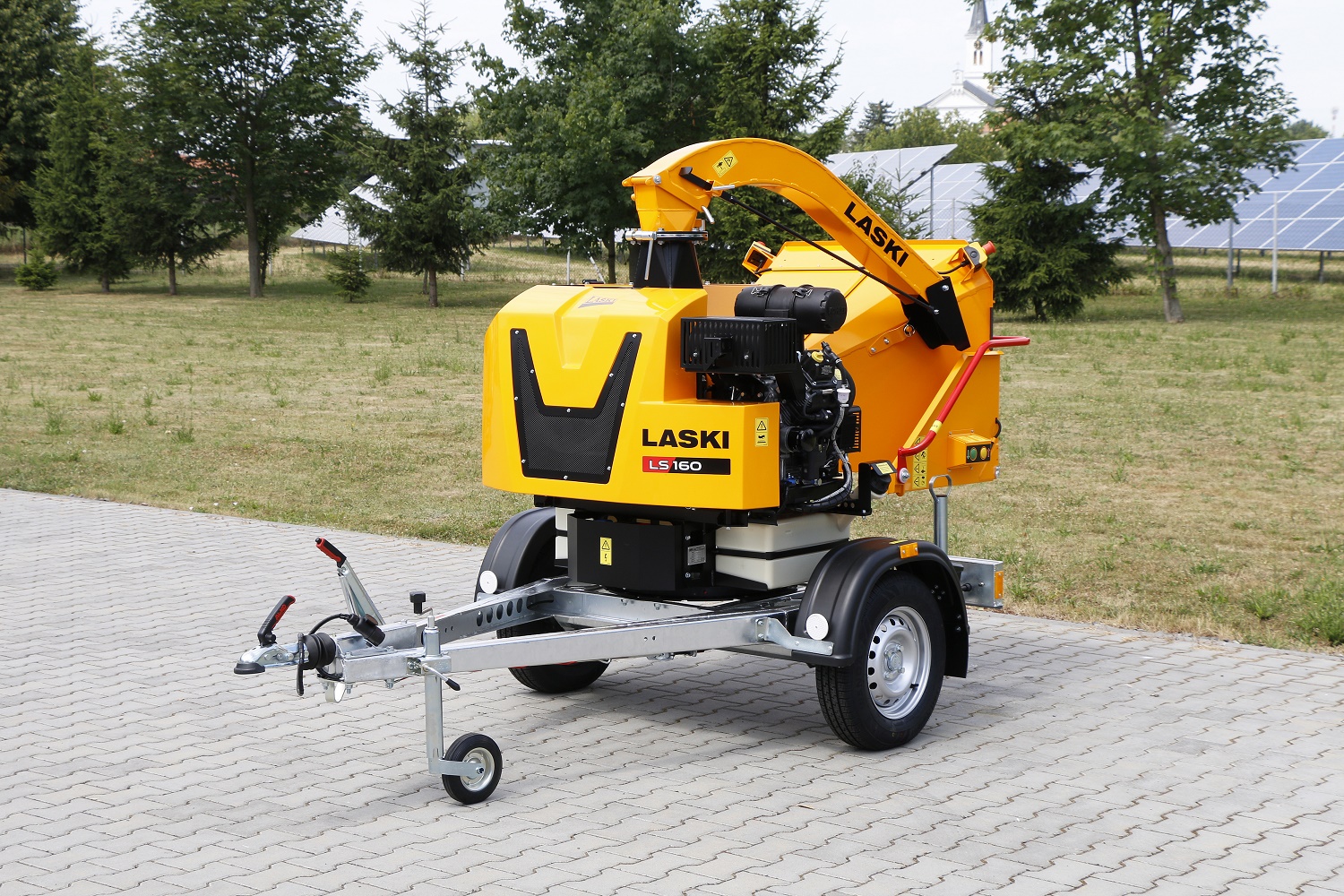

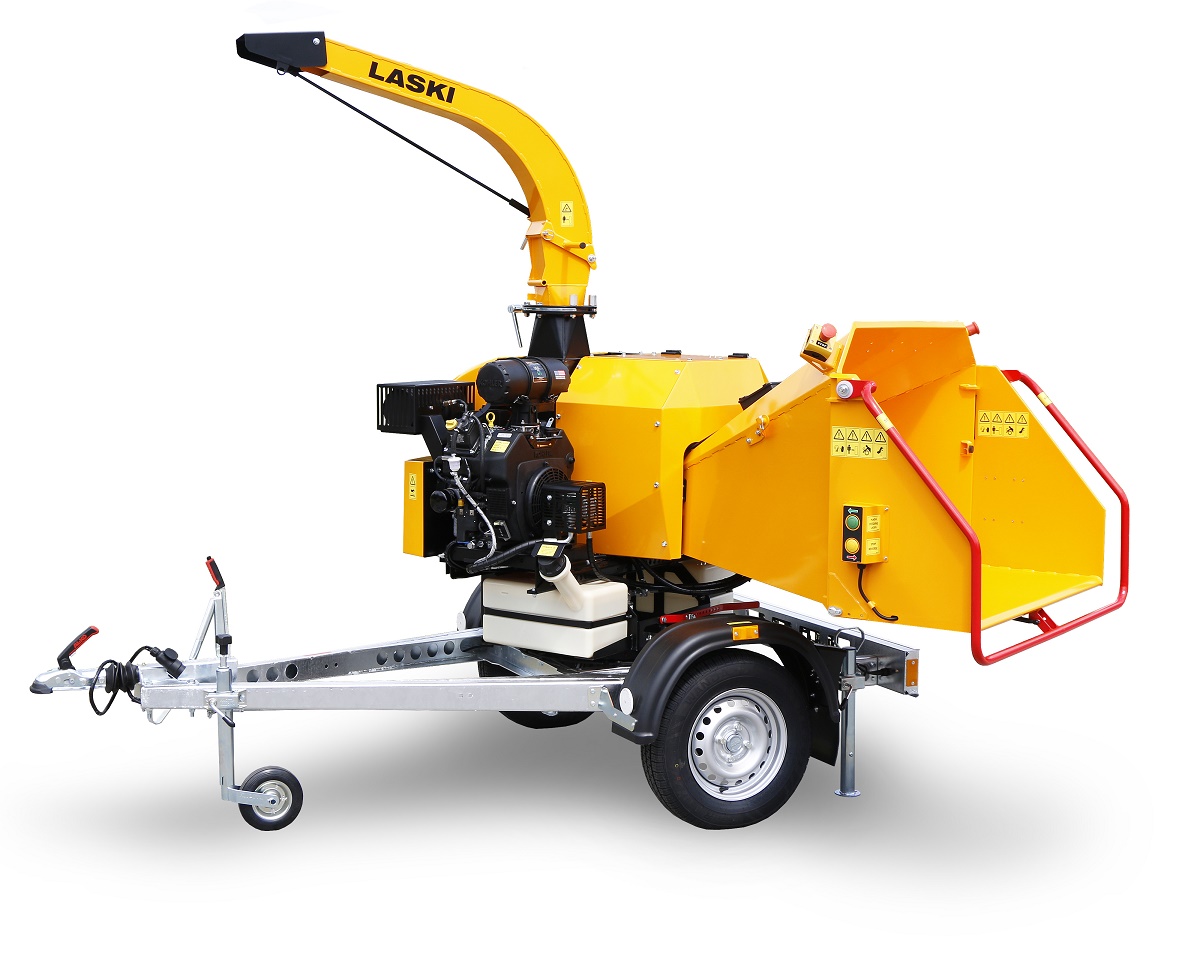

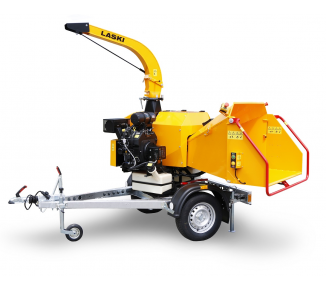

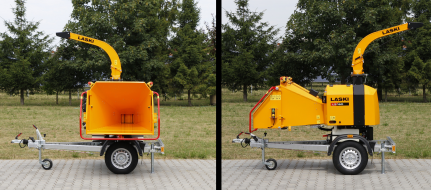

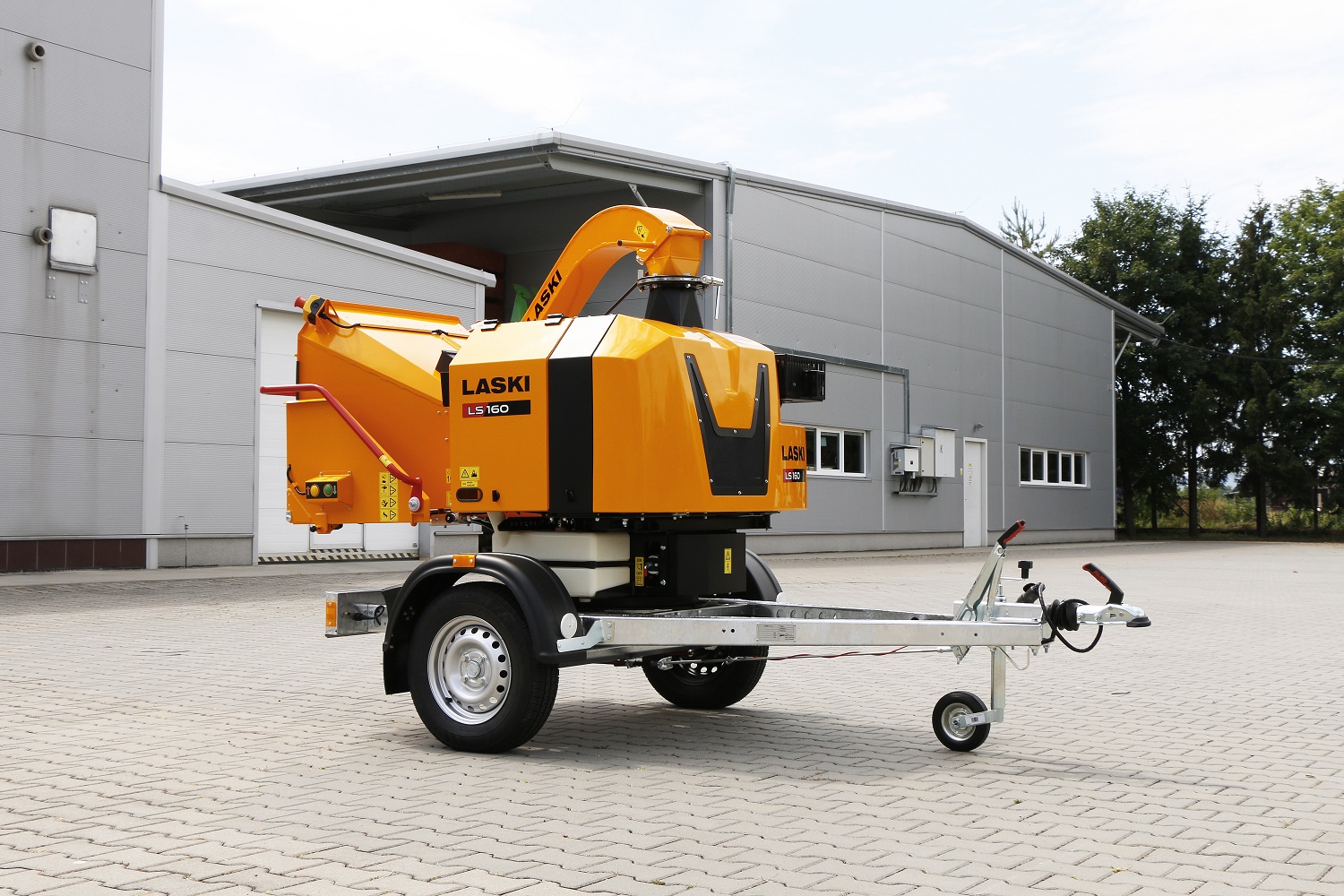

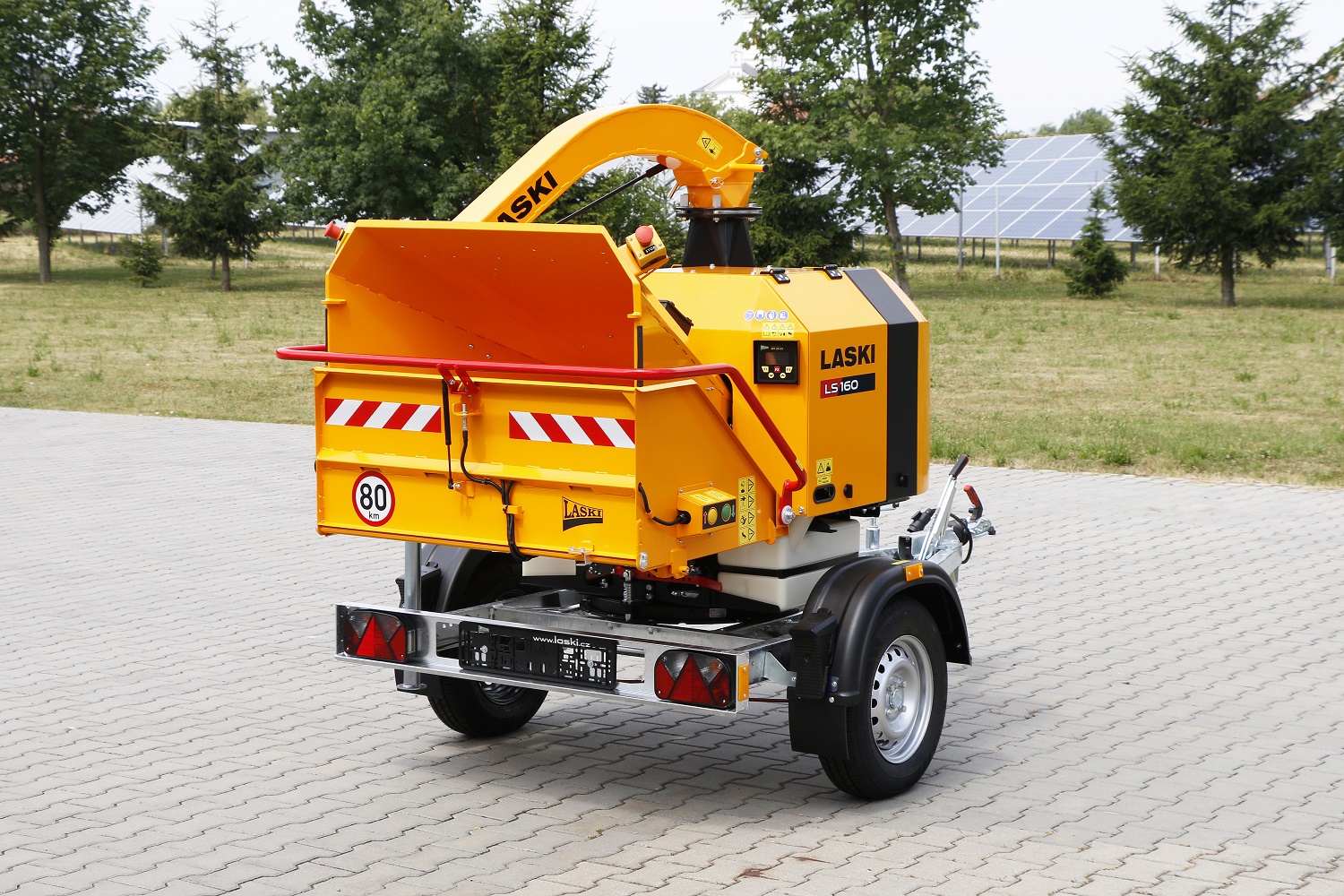

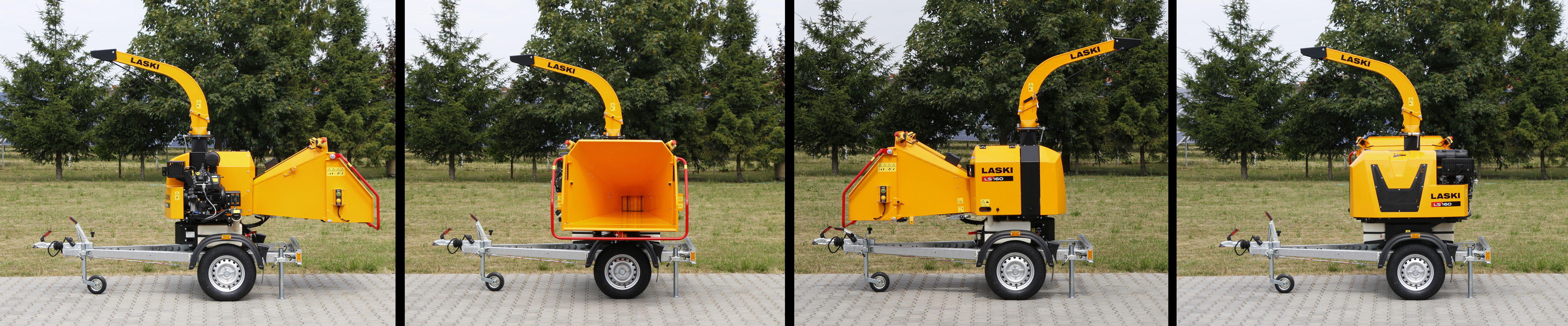

The chipper LS 160 PB is a compact machine intended for disposal of wood waste, twigs, bark, branch-wood and other above-ground biomass, for chipping of redundant timber such as sticks, deals, pickets etc. and also for manufacture of chips from aforesaid materials. It can dispose all these materials with diameters up to 160 mm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of its combustion engine. Furthermore, standard equipment comprises also an hour counter (daily/total) and an air-cooled 26,5 HP Kohler petrol engine with injection.

This chipper assembly, completed also with an overrun brake, can be coupled to towing vehicles (even passenger cars). For such a road train up to 3,5 t the driver should keep a driving licence at least of the group B.

Code: LC-14001

LPG variant - LS160 PBG. Code.: LC-16001

LS 160 PB2 variant with RATO engine. Code.: LC-14003

12 ÷ 16 m3/h
730
Max. 160 mm

Technical specification

TECHNICAL SPECIFICATION
LS 160 PB
Length :
3485 mm; (3155 mm - transport)
Width :
1590 mm
Height :
2500 mm ; (1920 mm - transport)
Weight :
730 kg
Load :
12 ÷16 m3/hod
Fuel consumption :
4,5 ÷ 5 l/hod
Recommended branch-wood maximum diameter :
160 mm
CUTTING HEAD
Diameter :
600 mm
Number of blades :
2
Length chips :
5 ÷ 15 mm
FEEDING DEVICE
Feeding hole size (B×H) :
240 x 170 mm
Number of rolls :
2
HOPPER
Turning possibility :
360° - 12 positions
Feeding profile(BxH) :
1040 x 800 mm

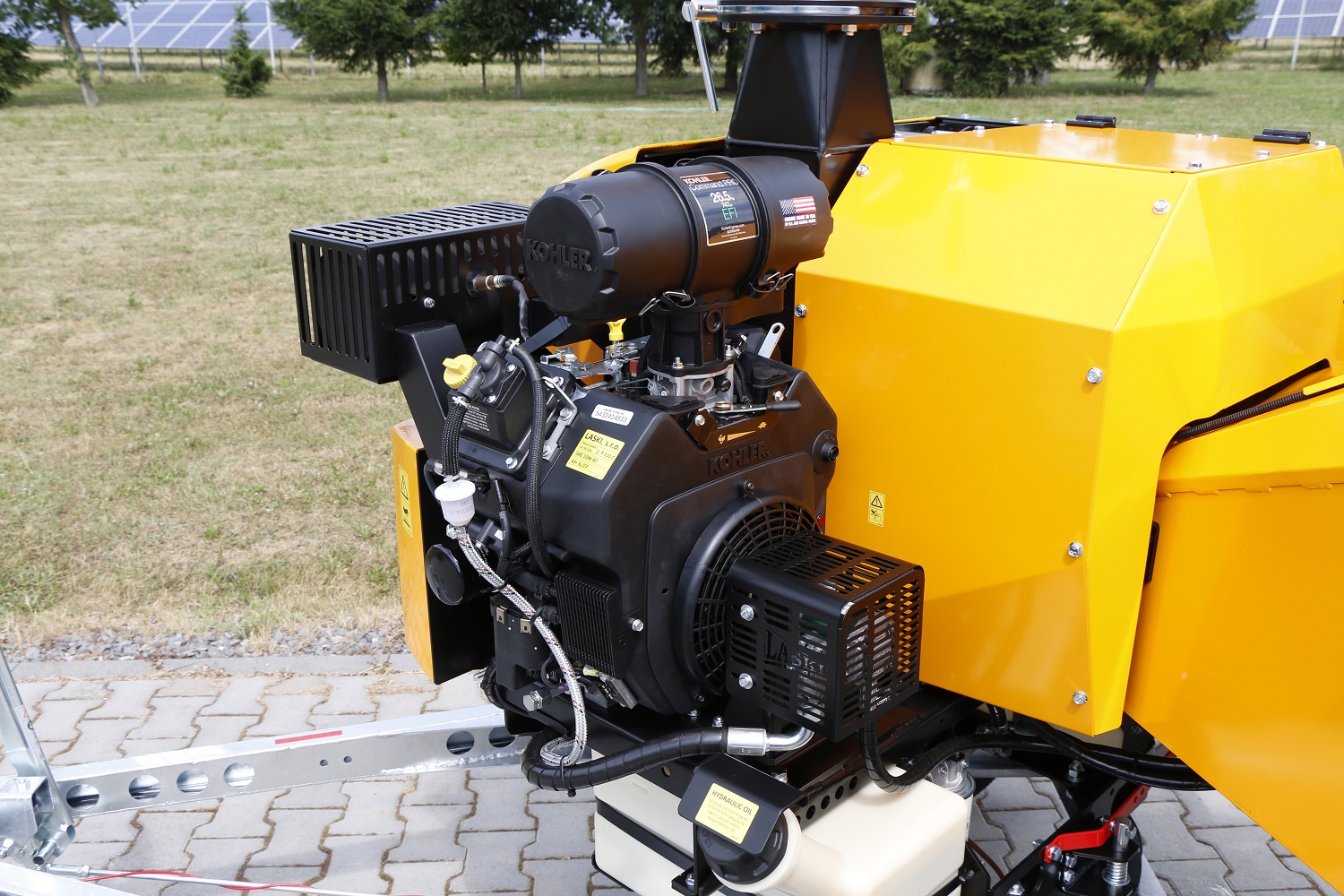

ENGINE
KOHLER ECH 749
Power output :
19,8 kW (26,5HP)
Fuel :
GASOLINE (E10)
Fuel tank capacity :
20 l
WORK SAFETY ELEMENTS
Machine-hour meter , charging indicator lamp , master power switch, safety grip
