P 38 R

We are sorry, but this product is no longer produced.

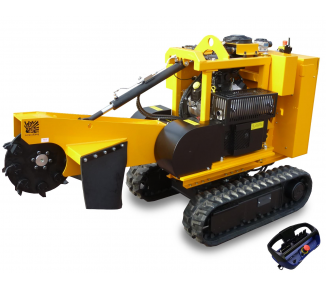

Stump cutter on tracked chassis with remote control P 38 R
Stump cutter on tracked chassis with remote control

Our stump cutter P 38 R is designed for cutting of above- and under-ground stump parts. Max. stump diameter to be cut is in fact unlimited. Thetracked chassis is wheel-track-adjustable. Its low centre of gravity provides high stability of the machine also under worse field conditions with maximum work safety. Minimum track base makes also limited spaces and narrow sites more accessible. It can even pass through a narrow garden gate only 70 cm wide. Its hydraulic control and remote controller facilitate any handling at work and make manual labour much easier. This machine is powered by a 35 HP petrol engine.

Code: P-38R-00-GA

RC
> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
P38R
Length
2440 mm
Width
670 - 970 mm
Height
1380 mm
Weight
1042 kg
Power output
1÷2 m³/hr
Fuel consumtion
6÷6,5 l/per hour
CUTTING HEAD
Cutterwheel diameter
510 mm (Laski) / 480 mm (MultiTip)
Number of teeth
18 (Laski wheel) / 6 x MultiTip (24)
CUTTING RANGE
Boom distance up
800 mm
Boom distance down
380 mm
Boom arc distance
1140 mm
ENGINE
KOHLER CH 980
Output
26,1 kW (35 HP)
Fuel
Natural 95
Tank capacity (Fuel)
17 l
Control
Remote Control
Travel Speed
4 km/h
