Stump cutter F 500HD

We are sorry, but this product is no longer produced.

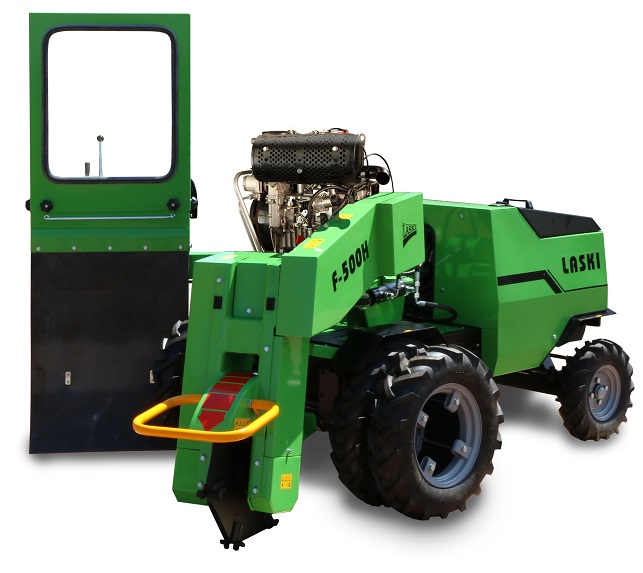

Stump cutter F 500HD

This machine is designed for cutting of a stump, i.e. its above- and also under-ground part. Stump diametr – no limitation (recommended up to 0,8 m).

Code: F-301 000

> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
F 500 HD
Length
2520 mm
Width

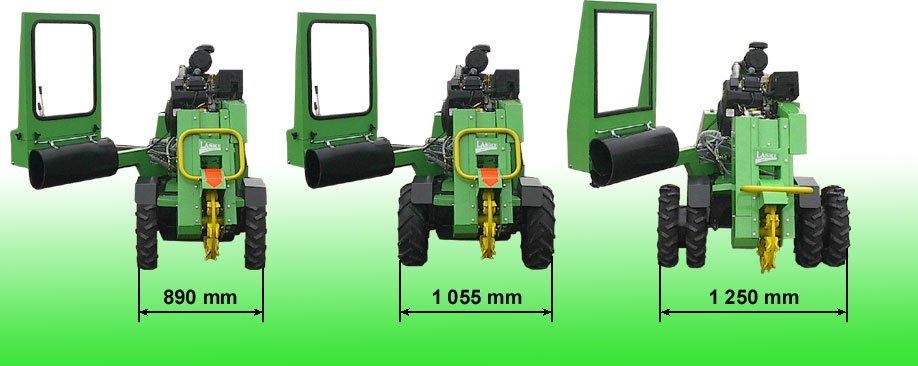

1055 mm or 890 mm (1250 mm – with dual wheels)
Heigth
1710 mm (1460 mm with protective shield removed)
Weight
800 kg
Machine power
ca 0,6 m3/h
CUTTING HEAD
Diameter
510 mm
Number of blades
18
CUTTING RANGE
Above ground
440 mm
Under ground
380 mm
Operating range
940 mm
Stump diameter
Unlimited
ENGINE
LOMBARDINI 12 LD 477-2
Power output
16,8 kW (22,8 HP)
Fuel
Diesel
Fuel tank capacity
16 l
Travel speed
max. 3 km/h
