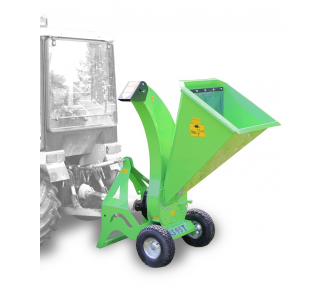

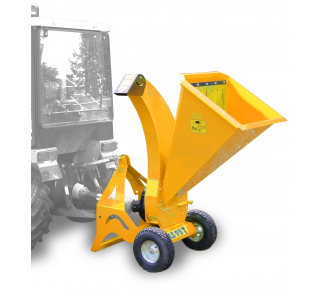

LS 95 T (540 rpm)

Light-weight chipper for gardening (for coupling to small tractors) LS 95 T (540 rpm)
Light-weight chipper for gardening (for coupling to small tractors)

The chipper LS 95 T can be characterized by high power output and simple design. This chipper is equipped with two cutting blades and one fixed counter blade. It is very easy to check or to replace the blades: just after swinging the loading chute away. Loading of materials to be chipped between the loading rolls is realised by gravity only, i.e. there is no other mechanism required. Ergonomic controls and larger travelling wheels make any machine handling very easy. This machine can be coupled to a corresponding three-point linkage (cat. 1N or 1) or to a quick-acting A-frame. For machine drive you need also PTO shaft assembly for 540 rpm.

Code: LZ-1109

1,6÷2,8 m3/h
15 ÷ 35 HP
Max. 80 mm

Technical specification

Specification
LS 95 T (540 rpm)
Lenght
1530 mm
Width
790 mm
Height
1550 mm
Weight
150 kg
Load
1,6 ÷ 2,8 m3/per hour
Fuel consumtion
1,8 l/per hour
Max. diameter
80 mm
Cutting head
Diameter
355 mm
Number of blades
2
Lenght of chip
4 ÷ 6 mm
Hopper
Turning possibility
-
Feeding profile
640 x 620 mm
DRIVE
Power PTO
15 ÷ 35 HP
PTO
540 rpm
Hinge
Three-point category 1 or 1N or quick hitch
ACCESSORIES
Kardan (optional)
041 20
