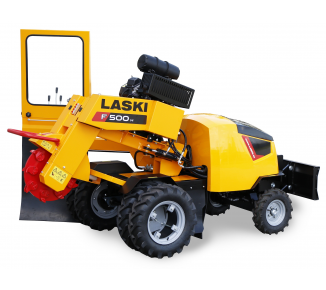

Stump cutter hydraulically controlled F 500H/27

Stump cutter hydraulically controlled F 500H/27

Our stump cutter F 500 is designed for cutting of above- and under-ground stump parts by cutting in a swinging way. Max. stump diameter to be cut is in fact unlimited. Hydraulic control facilitates any handling at work and makes manual labour much easier. Its protective shield enables to control stump cutting even in close proximity to the running head with maximum work safety. Dual tyres on front travelling wheels for diverse field conditions are optionally available. Overall width of 890 mm makes also limited spaces and narrow sites more accessible.

Code: F-300 002

> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
F 500 H/27
Length
2520 mm
Width
890 mm (1250 mm – with dual wheels)
Heigth
1710 mm (1460 mm with protective shield removed)
Weight
760 kg
Machine power
ca 0,6 m3/h
CUTTING HEAD
Diameter
510 mm
Number of blades
18
CUTTING RANGE
Above ground
650 mm
Under ground
380 mm
Operating range
940 mm
Stump diameter
Unlimited
ENGINE
KOHLER CH 742
Power output
18,6 kW (25 HP)
Fuel
GASOLINE (E10)
Fuel tank capacity
16 l
Travel speed
max. 3 km/h
