TR 120 HI

Trencher for non-freezing depth TR 120 HI
Trencher for non-freezing depth

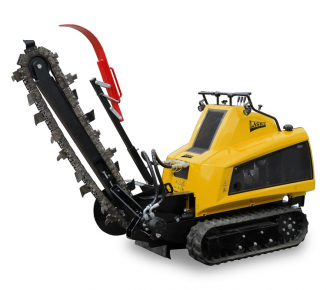

The trencher TR 120 H facilitates trenching works in compact soils with diverse structure. The final trench is up to 120 cm deep and up to 20 cm wide. It is designed for works at cables and lines lying in gardens, school yards and parks without moving to much earth. Its tracked undercarriage enables also to move the machine even with creeping speed if needed. This trencher is equipped also with a coupler for a backfilling blade. Furthermore, standard equipment comprises also lights, beacon, voltmeter, USB charger and hour counter (daily/total). Compact design of the machine and its overall width of 870 mm make also narrow sites and limited places more accessible.

Code - Carrier DR-05001

Carrier TR 120 H (Rato) Code: DR-05002

Code - Adapter DR-05653

Code - Chain (TR 120-180) DR-05665

Code - Chain (TR 120-150) DR-05700

Code - Dozer DR-05648

200 mm
1200 mm

Technical specification

TECHNICAL SPECIFIKATION
TR 120 HI
Length
3400 mm (transport 2550 mm)
Width
870 mm
Height
1360 mm (transport 1920 mm)
Weight
867 kg
Work speed
20 – 120 m/h
Transport speed
4 km/h
TRENCH DIMENSIONS
Trench depth
1200 mm
Trench width
200 mm
ENGINE
KOHLER ECH 980
Power output
25,7 kW (35 HP)
Fuel
Natural 95
Fuel tank capacity
16 l
Start
Electric

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.

Kohler Lombardini Page of model
