FZ 560 T - M

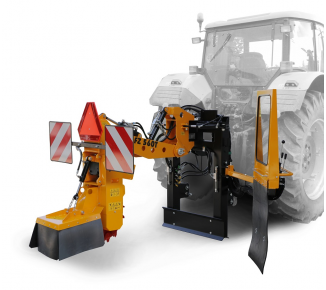

Tractor-mounted stump cutter with manual control  FZ 560 T - M
Tractor-mounted stump cutter with manual control

The stump cutter FZ 560 T is intended for coupling to three-point linkage andused for cutting of above- and under-ground stump parts. Max. diameter to be cut is in fact unlimited.

This machine is equipped with manual controls.

Code: F-305 005

40 HP
> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
FZ 560 T - M
Length
2200 mm
Width
1400 mm
Height
1900 mm
Weight
640 kg
Power output
1÷2 m³/hr
CUTTING WHEEL
Diameter
560 mm
Number of blades
30
CUTTING RANGE
Above ground
650 mm
Under ground
500 mm
Cutting width
1200 - 1800 mm
Stump diameter
no limitation
Drive
PTO output
40 HP
PTO speed
540 rpm
HINGE 3-Point
Class 1, 2
CONTROL
Manual
NOT INCLUDED
Cardan
004 835
