FZ 500 H

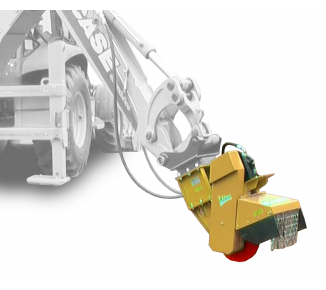

Jib-mounted stump cutter powered hydraulically    FZ 500 H
Jib-mounted stump cutter powered hydraulically

Our jib-mounted stump cutter FZ 500 H is intended for cutting of above- and under-ground stump parts. It is designed for attachment to a hydraulic jib of building machines equipped with a corresponding fixing device and extern hydraulics providing pressure of 200 bar, flow rate from 65 to 85 l/min. The cutter itself is also completed with a 34 ccm hydromotor to be connected to the carrier hydraulic circuit. This solution brings perfect control over cutting and provides high user comfort and work safety.Various fixing devices are available optionally.

Code: F-303 500

> 1000 mm

Technical specification

TECHNICAL SPECIFICATION
FZ 500/H
Length
880 mm
Width
765 mm
Heigth
1000 mm
Weight
188 kg (170 kg-without blades)
Machine power
ca 0,6 m3/h
CUTTING HEAD
Cutting Head diameter
510 mm
Number of blades
18
CUTTING RANGE
Above ground
Along parameter porter
Under ground
300 mm
Cutting width
Along parameter porter
Stump diameter
Unlimited
ENGINE
HYDROMOTOR
Size
34 ccm
Presure
200 bar
Flow
65 ÷ 85 l/min
Hydraulic connection
pressure + return + leak line
NOT INCLUDED
Hinge:
No.:
Stand
F 303 260
Plate 002914
F 303 280
ROTATOR FR 10
F 303 270
JCB 1CX-2CX
F 303 285
Hinge
F 303 290
860 ELITE
F 303 300
AVANT
F 303 320
DRAGO DS01, LEHNHOFF MS 01
F 303 340
LEHNHOFF MS 03, DRAGO DS 03
F 303 345
JCB 3CX-4CX
F 303 355
TARSUS 883
F 303 360
NEUSON 2800 RD
F 303 370
HANIX 15A
F 303 380
LIBRA 1,6t
F 303 390
UNIMOG
F 303 400
PAUS
F 303 410
NEUSON 2500 RD
F 303 420
YANMAR B27
F 303 430
S40
F 303 440
CASE
F 303 450
CASE WX210
F 306 600
