LS 65/CH

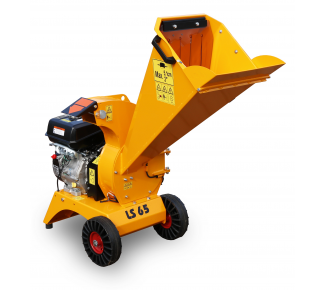

Light-weight chipper for gardening LS 65/CH
Light-weight chipper for gardening

The chipper LS 65/CH can be characterized by high power output and simple design. It is powered by the Kohler engine. Transmission of power from the engine to the chipping device is based on V-belt gearing. This chipper is equipped with two cutting blades and one fixed counter blade. It is very easy to check or to replace the blades: just after swinging the loading chute away. Loading of materials to be chipped between the loading rolls is realised by gravity only, i.e. there is no other mechanism required. The chipper is also ready for chips collecting into bags made from air-permeable fabric and fitted on its discharge duct. Light-weight construction and larger travelling wheels make any machine handling very easy.

Code: LZ-1004

0,9÷1,6 m3/h
95
51 mm

Technical specification

Specification
LS 65/CH
Lenght
1250 mm
Width
560 mm
Height
1260 mm
Weight
95 kg
Load
0,9 ÷1,6 m3/per hour
Fuel consumtion
1 l/per hour
Max. diameter
51 mm
Cutting head
Diameter
280 mm
Number of blades
2
Lenght of chip
4 ÷ 6 mm
Hopper
Turning possibility
-
Feeding profile
390 x 390 mm
Engine
Kohler CH 395
Power output
7,1 kW (9,5 HP) @ 3600 rpm
Fuel
Natural 95
Fuel tank capacity
7 l
