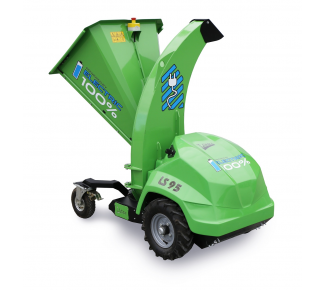

Electric chipper with travel drive for gardening LS 95 A

Electric chipper with travel drive for gardening LS 95 A

The LS 95 A chipper is characterised by its high performance and simple design. The machine is fully electric. The motor is connected to the cutting unit by a V-belt. The machine is equipped with two cutting knives and a counter blade. The feeding of the chipped material is gravity fed, which means that the material loaded into the hopper slides towards the cutting unit by itself. Ergonomic handles and electric travel make handling the machine as easy as possible.

Code: LZ-1111

1,6÷2,8 m3/h
280
Max. 80 mm

Technical specification

Specification
LS 95 A
Lenght
1730 mm
Width
790 mm
Height
1530 mm
Weight
280 kg
Load
1,6 ÷ 2,8 m3/per hour
Max. diameter
80 mm
Cutting head
Diameter
355 mm
Number of blades
2
Lenght of chip
4 ÷ 6 mm
Hopper
Turning possibility
-
Feeding profile
640 x 620 mm
Engine
El. BLDC IPM 200-33-48V
Power output
5 ÷ 14 kW
Capacity Battery LiFePO4 Cell:
100 Ah
