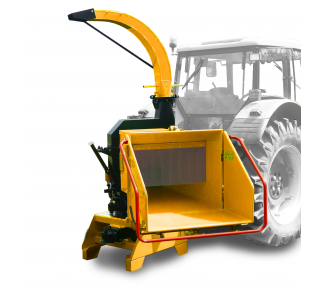

LS 200 T (Bisagra 8t)

Tractor-mounted chipper with swivel base and hitch for 8t trailers LS 200 T (Bisagra 8t)
Tractor-mounted chipper with swivel base and hitch for 8t trailers

The chipper LS 200 T is a compact machine intended for disposal of wood waste with diameters up to 200 mm. It should be coupled to a tractor with corresponding three-point linkage (cat. 2). For machine drive you need also PTO shaft assembly from 750 to 1000 rpm. Its turnable upper frame part is equipped with a swivel base so that the loading chute is accessible from any side. The chipper is also equipped with two loading rolls hydraulically controlled and linked to an automatic system as overload protection of the PTO shaft. Furthermore, standard equipment comprises an independent hydraulic system and an hour counter (daily/total). This chipper is also equipped with a hitch for coupling of 8t trailers.

Code: LS-3501

10 ÷ 15 m3/h
40 ÷ 80 HP
Max. 200 mm

Technical specification

TECHNICAL SPECIFICATION
LS 200T
Length
2555 mm ; 2155 ( transport )
Width
1450 mm ; 1515 ( transport )
Height
2915 mm ; 2225 ( transport )
Weight
980 kg
Load
ca. 10-15 m3/hr
Recommended branch max. diameter
200 mm
CUTTING HEAD
Diameter
700 mm
Number of blades
2
Wood chips size
10÷20 mm
Turning on
freewheel clutch
FEEDING DEVICE
Feeding hole size (B×H)
290 x 220 mm
Number of rolls
2
HOPPER
Directional rotation
180° - 7 positions
Feeding profile (B×H)
920 x 800 mm
TRACTOR HITCH
3-point linkage
Category 2
PTO Power
40 – 80 HP
PTO Rotation speed
750 ÷ 1000 rpm
Electric installation
12V
WORK SAFETY ELEMENTS
Machine-hour meter, charging indicator lamp, master power switch, safety grip
ACCESSORIES
Electronic regulation - NOSTRESS
Trailer coupling 8t.
ACCESSORIES options (NOT INCLUDED)
Cardan shaft L=1000 mm (Kardan 4542)
