LS 95 ES

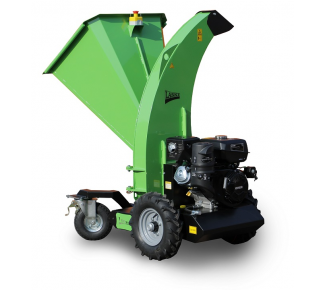

Chipper with travel drive for gardening LS 95 ES
Chipper with travel drive for gardening

This modification LS 95 ES provides good maneuverability even without switching its electric travel gear. Having turned the travel drive on, you can very easy move the machine to another workplace also on uneven ground. The chipper LS 95 ES can be characterized by high power output and simple design. It is powered by the Kohler engine. Transmission of power from the engine to the chipping device is based on V-belt gearing. This chipper is equipped with two cutting blades and one fixed counter blade. It is very easy to check or to replace the blades: just after swinging the loading chute away. Loading of materials to be chipped between the loading rolls is realised by gravity only, i.e. there is no other mechanism required. Ergonomic controls and larger travelling wheels make any machine handling very easy. No problem to move the machine on uneven ground or to go over curbstones.

Code: LZ-1110

1,6÷2,8 m3/h
222
Max. 80 mm

Technical specification

Specification
LS 95 ES
Lenght
1500 mm
Width
790 mm
Height
1530 mm
Weight
222 kg
Load
1,6 ÷ 2,8 m3/per hour
Fuel consumtion
1,8 l/per hour
Max. diameter
80 mm
Cutting head
Diameter
355 mm
Number of blades
2
Lenght of chip
4 ÷ 6 mm
Hopper
Turning possibility
-
Feeding profile
640 x 620 mm
Engine
Kohler CH 440
Power output
10 kW (14 HP) @ 3600 rpm
Fuel
Natural 95
Fuel tank capacity
7 l

Representation engines

From the industry, through construction, agriculture, the automotive industry to manufacture ship engines are Lombardino KOHLER.
