LS 100/27 C

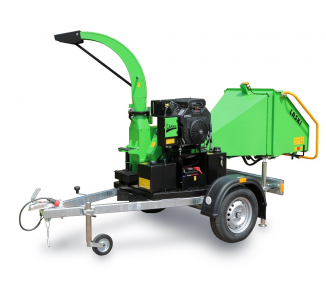

Chipper with unbraked chassis LS 100/27 C
Chipper with unbraked chassis

LASKI LS100/27CB is an innovated compact chipper based on long-term experiences with our field-proven version LS100/27. Max. diameter of brushwood is 100 mm. Its enhanced loading chute facilitates handling with material to be loaded. EU homologation for trailers up to 750 kg; intended for towing by cars; only the driver's licence "B" required if towed in a road train up to 3,5 t. This chipper is also equipped with hydraulically powered loading roll, automatic system for engine overload control, hour counter (daily, total), tiltable loading chute, turnable discharge duct and 25 HP engine.

Code: LS-7001

3 ÷ 8 m3/h
616
Max. 100 mm

Technical specification

TECHNICAL SPECIFICATION
LS 100/27C
Lenght
3653 mm, 3130 (transport)
Width
1595 mm
Height
2080 mm
Weight
630 kg
Load
3 ÷8 m3/hr
Fuel consumption
7,0 l/hr
Max. Recommended branch diameter
do 100 mm (4")
CUTTING HEAD
Diameter
466 mm
Blades
4
Lenght of chip
11 mm
FEEDING DEVICE
Feeding hole size (BxH)
180 x 140 mm
Number of rolls
2 (uper roll driven)
HOPPER
Feeding profile(BxH)
800 x 735 mm
ENGINE
KOHLER CH 740 S
Power output
18,6 kW (25 HP)
Fuel
gasoline NATURAL 95
Fuel tank capacity
16 l
WORK SAFETY ELEMENTS
Machine-hour meter, master power switch, safety grip, handbrake
