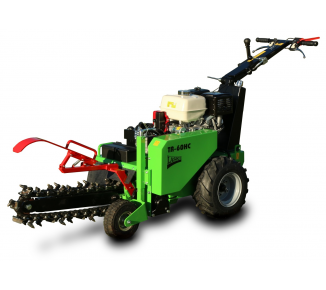

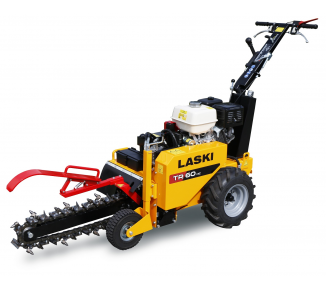

TR 60/13 HC

Trencher

This machine facilitates trenching works at cables and lines lying in gardens, schools and parks without moving too much earth. The trench depth is adjustable with a plain and clean unvaried profile given by the cutting chain width. This machine is used for trenching in compact and hard soils with small stones in size up to 50 mm. In addition to that, the trencher LASKI TR 50 H is equipped with own hydrodrive unit for better handling. While working it is used for shifting, changes of operating speed and for corrections of trench surface qualities in dependence on the given soil. Besides its operating functions this hydromotor is used as a main driving element when setting the machine in its transport mode.

Code: DR-02014

100 mm
680 mm

Technical specification

TECHNICAL SPECIFIKATION
TR 60H/13 HC
Length
2220 mm (transport 1650 mm)
Width
785 mm
Heigth
900 mm (transport 1080 mm)
Weight
293 kg
Work speed
20 – 180 m/h
Transport speed
2,8 km/h
TRENCH DIMENSIONS
Trench dept
680 mm
Trench width
100 mm
Number of pins
27
ENGINE
HONDA GX 390
Power output
8,7 kW (11,7 HP)
Fuel
Natural 95
Fuel tank capacity
6,1 l
Start
Manual / Electric
NOT INCLUDED
Traction wheel - Right
DR-02920
Traction wheel - Left
DR-02925
Scoop
DR-01290
